LDC0851HDSGR - Texas Instruments

Description: Differentially Compensated and Highly Accurate Inductive Switch

Download LDC0851HDSGR Model

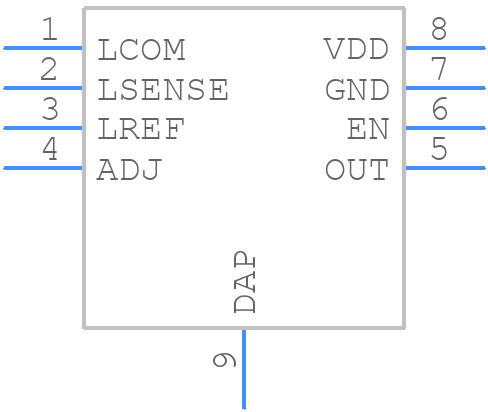

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LDC0851HDSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG
click to zoom
3D Models
LDC0851HDSGR - Texas Instruments  - 3D model - Small Outline No-lead - DSG
click to zoom

LDC0851HDSGR Details

  • Manufacturer Part Number:

    LDC0851HDSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Body Breadth:

    2 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    2 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.40-2.90V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Response Time:

    580 µs

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,INDUCTIVE

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

LDC0851HDSGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LDC0851HDSGR involves keeping the inductive elements away from the capacitive elements, using a solid ground plane, and minimizing the length of the traces connecting the device to the inductor and capacitors.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet, and then adjust based on the specific application requirements.
  • The LDC0851HDSGR can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range (4.5V to 15V) for optimal performance and reliability.
  • Ensure good thermal design, including a heat sink if necessary, and follow the recommended PCB layout guidelines to minimize thermal resistance. Monitor the device temperature and adjust the design as needed to stay within the specified junction temperature range (-40°C to 125°C).
  • The EN (enable) pin is used to enable or disable the device. Connect the EN pin to a logic high (e.g., VCC) to enable the device, and connect it to a logic low (e.g., GND) to disable the device.
