LDC0851HDSGT - Texas Instruments

Description: Proximity Sensors LDC0851 Differentially Compensated and Highly Accurate Inductive Switch 8-WSON -40 to 125

Download LDC0851HDSGT Model

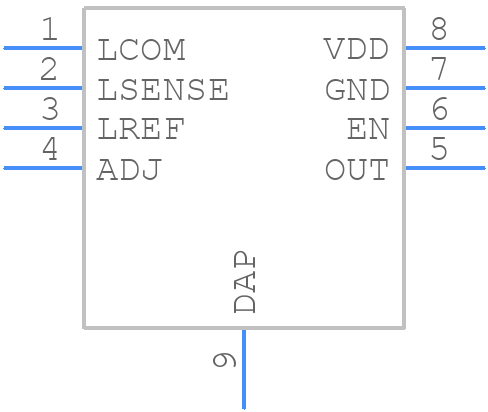

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LDC0851HDSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG (S-PWSON-N8)
click to zoom
3D Models
LDC0851HDSGT - Texas Instruments  - 3D model - Small Outline No-lead - DSG (S-PWSON-N8)
click to zoom

LDC0851HDSGT Details

  • Manufacturer Part Number:

    LDC0851HDSGT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Body Breadth:

    2 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    2 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.40-2.90V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape/Style:

    SQUARE

  • Response Time:

    580 µs

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,INDUCTIVE

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Termination Type:

    SOLDER

LDC0851HDSGT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency traces short and away from the power plane. Use a common mode choke or a ferrite bead to filter the power supply.
  • Use a high-quality, low-ESR capacitor in the LC tank circuit. Ensure the inductor is properly connected and the PCB layout is optimized for minimal parasitic inductance. Calibrate the device using a known inductor value.
  • The maximum operating frequency is 1 MHz, but it can be extended to 2 MHz with proper PCB layout and component selection. However, this may affect the accuracy of the inductance measurements.
  • No, the LDC0851HDSGT is designed specifically for inductance measurements. It is not suitable for capacitance measurements. Use a different device, such as the LDC1612, for capacitance measurements.
  • Use a shielded enclosure, keep the device away from noise sources, and use a low-pass filter or a ferrite bead to filter the power supply. Implement a noise-reducing algorithm in the firmware, such as averaging or median filtering.
