Texas Instruments provides a recommended PCB layout in the LDC1000NHRJ evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to ensure optimal performance.
The LDC1000NHRJ requires a one-time calibration process, which involves applying a known inductance value to the device and adjusting the internal calibration registers. The calibration process is described in the LDC1000NHRJ datasheet and application notes.
The LDC1000NHRJ can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and the inductance value being measured. Higher frequencies may be possible with proper filtering and signal conditioning.
Yes, the LDC1000NHRJ has built-in noise filtering and averaging capabilities to help reject noise and interference. Additionally, proper PCB layout, shielding, and grounding can help minimize the effects of noise on the measurement.
The LDC1000NHRJ has a typical accuracy of ±1% over the entire operating range, making it suitable for a wide range of applications. However, the actual accuracy may vary depending on the specific application, PCB layout, and calibration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDC1000NHRJ Overview

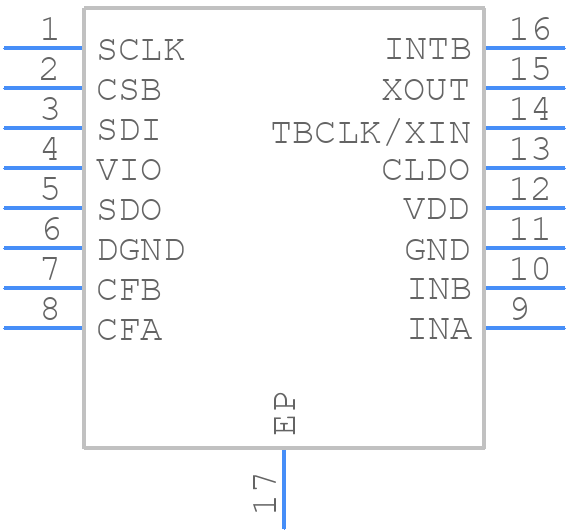

Use the download button to access the LDC1000NHRJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC10,
or try a keyword search, such as Other Signal Circuits
