LDC1051NHRR - Texas Instruments

Description: 8-bit Rp only Inductance-to-Digital Converter with SPI for Inductive Sensing Applications

Download LDC1051NHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

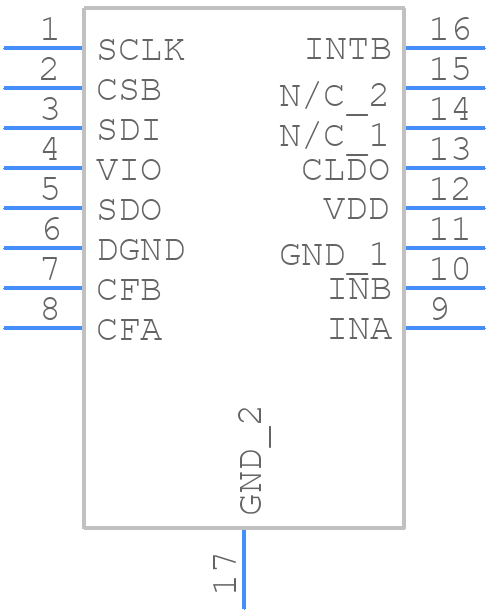

LDC1051NHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1051NHRR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHR-
click to zoom
3D Models
LDC1051NHRR - Texas Instruments - 3D model - Small Outline No-lead - NHR-
click to zoom

LDC1051NHRR Details

  • Manufacturer Part Number:

    LDC1051NHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1051NHRR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAU522, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • Calibration involves connecting a known inductor to the device and adjusting the internal calibration registers to match the expected value. The calibration process is described in the device datasheet and application notes.
  • The LDC1051NHRR can measure inductance up to 100 kHz, but the maximum frequency range depends on the specific application and the quality of the inductor being measured. For high-frequency measurements, it's recommended to use a lower frequency range to ensure accurate results.
  • Yes, the LDC1051NHRR can measure inductance in a multi-layer PCB, but it's essential to ensure that the device is properly calibrated and that the PCB layout is optimized to minimize noise and parasitic effects.
  • To minimize noise and interference, use proper shielding, grounding, and decoupling techniques. Additionally, use a low-pass filter or a shielded cable to connect the device to the inductor being measured.
