The recommended layout and placement for the LDC1101DRCR involves keeping the device close to the sensing coil, using a solid ground plane, and minimizing the distance between the device and the sensing coil. Additionally, it is recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing signals under the device.
To optimize the sensitivity of the LDC1101DRCR, it is recommended to adjust the gain settings, optimize the sensing coil design, and minimize noise and interference. Additionally, using a shielded sensing coil and a well-designed PCB layout can also improve sensitivity.
The recommended power-up sequence for the LDC1101DRCR involves powering up the device after the power supply has reached a stable voltage, and then enabling the clock signal. It is also recommended to follow a specific power-up sequence to ensure proper device operation.
To troubleshoot issues with the LDC1101DRCR, it is recommended to check the power supply voltage, clock signal, and sensing coil connections. Additionally, using a logic analyzer or oscilloscope to monitor the device's signals and checking the device's registers can help identify the root cause of the issue.
The LDC1101DRCR has a maximum junction temperature of 150°C. To ensure reliable operation, it is recommended to keep the device within a temperature range of -40°C to 125°C, and to use thermal management techniques such as heat sinks or thermal pads to dissipate heat.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDC1101DRCR Overview

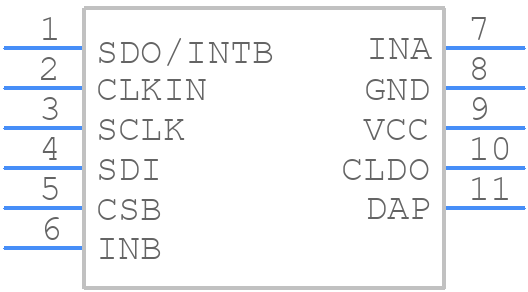

Use the download button to access the LDC1101DRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC11,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
