Texas Instruments provides a recommended PCB layout in the LDC1312QDNTTQ1 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane to minimize noise and ensure optimal performance.
The LDC1312 requires calibration to ensure accurate inductance measurements. TI provides a calibration procedure in the datasheet, which involves measuring the device's internal resistors and capacitors, and then calculating the calibration coefficients using the provided equations.
The LDC1312 can measure inductance up to 100 kHz, but the maximum frequency range depends on the specific application and the type of inductor being measured. TI recommends consulting the datasheet and application notes for more information on frequency range and measurement limitations.
Yes, the LDC1312 can be used to measure inductance in a multi-coil system, but it requires additional circuitry and signal processing to separate the individual coil measurements. TI provides application notes and design examples for multi-coil systems in the datasheet and online resources.
The LDC1312 has a typical power consumption of 1.5 mA at 3.3 V supply voltage, but this can vary depending on the operating frequency, measurement mode, and other factors. TI provides detailed power consumption information in the datasheet and recommends consulting the device's power management guidelines for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDC1312QDNTTQ1 Overview

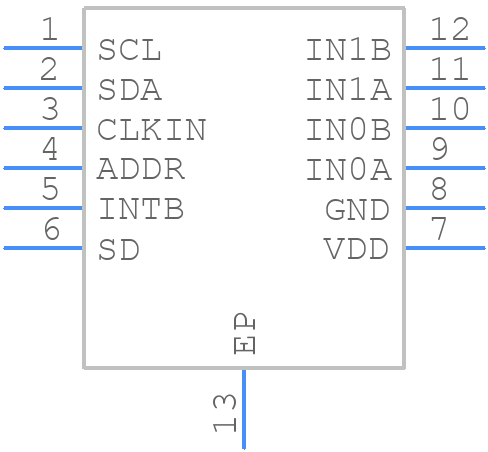

Use the download button to access the LDC1312QDNTTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC13,
or try a keyword search, such as Other Signal Circuits
