LDC1614RGHR - Texas Instruments

Description: 4-channel, 28-bit Inductance-to-Digital Converter with I2C for Inductive Sensing

Download LDC1614RGHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

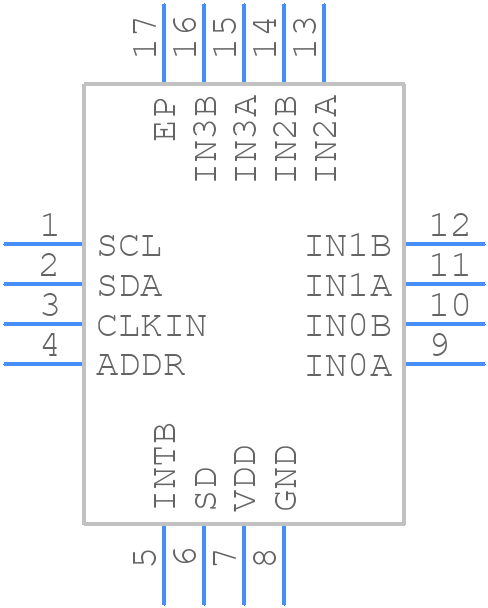

Symbol
LDC1614RGHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1614RGHR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH0016A
click to zoom
3D Models
LDC1614RGHR - Texas Instruments - 3D model - Quad Flat No-Lead - RGH0016A
click to zoom

LDC1614RGHR Details

  • Manufacturer Part Number:

    LDC1614RGHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Number of input channels : 4

  • Converter Type:

    INDUCTANCE TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    28

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1614RGHR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the sensor and the IC close together, and use a shielded cable for the sensor connection to minimize noise.
  • Calibration involves applying a known inductance value to the sensor and adjusting the internal registers to match the expected value. TI provides a calibration guide and software tools to assist with this process.
  • The LDC1614RGHR can operate up to 100 kHz, but the maximum frequency depends on the specific application and the sensor used. Consult the datasheet and application notes for more information.
  • Yes, the LDC1614RGHR is designed to work with a variety of sensors. However, the sensor must meet the IC's requirements for coil resistance, inductance, and Q-factor. Consult the datasheet and application notes for more information.
  • The LDC1614RGHR has built-in temperature compensation, but additional external compensation may be necessary depending on the specific application. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDC1614RGHR Overview

Use the download button to access the LDC1614RGHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC16, or try a keyword search, such as Other Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
