Texas Instruments provides a recommended PCB layout in the application note SLAU603, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Calibration involves adjusting the internal registers to compensate for parasitic capacitance and inductance. TI provides a calibration procedure in the datasheet, which involves measuring the device's output with a known inductor and adjusting the registers accordingly.
While the datasheet specifies a maximum frequency range of 1 MHz, the device can operate up to 2 MHz with some degradation in accuracy. However, it's essential to consult with TI's application engineers to determine the feasibility of operating at higher frequencies for specific use cases.
Yes, the LDC5072EPWRQ1 can be used in switching power supplies, but it's crucial to ensure that the device is properly synchronized with the switching frequency to avoid aliasing and measurement errors. TI provides guidelines for synchronizing the device with the switching frequency in the application note SLAU604.
The LDC5072EPWRQ1 has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using thermal vias, heat sinks, and thermal interface materials. TI provides thermal management guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDC5072EPWRQ1 Overview

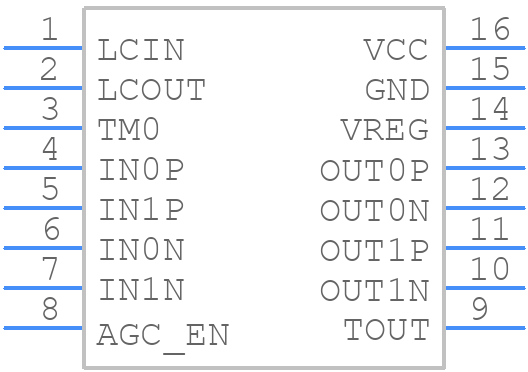

Use the download button to access the LDC5072EPWRQ1 schematic symbol, PCB footprint, and 3D model.
