Part Image

LDD-A402NI - Lumex

Description: Display Modules - LED Character and Numeric Green 7-Segment 2 Character Common Anode 2.2V 10mA 0.630" H x 0.791" W x 0.276" D (16.00mm x 20.10mm x 7.00mm) 16-DIP (0.500", 12.70mm)

Download LDD-A402NI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

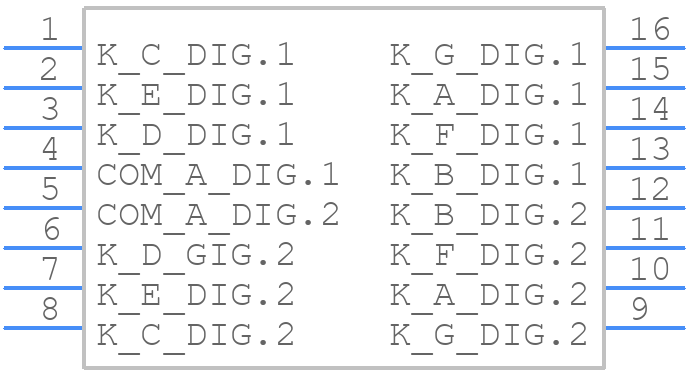

LDD-A402NI - Lumex - PCB symbol
click to zoom
PCB Footprints

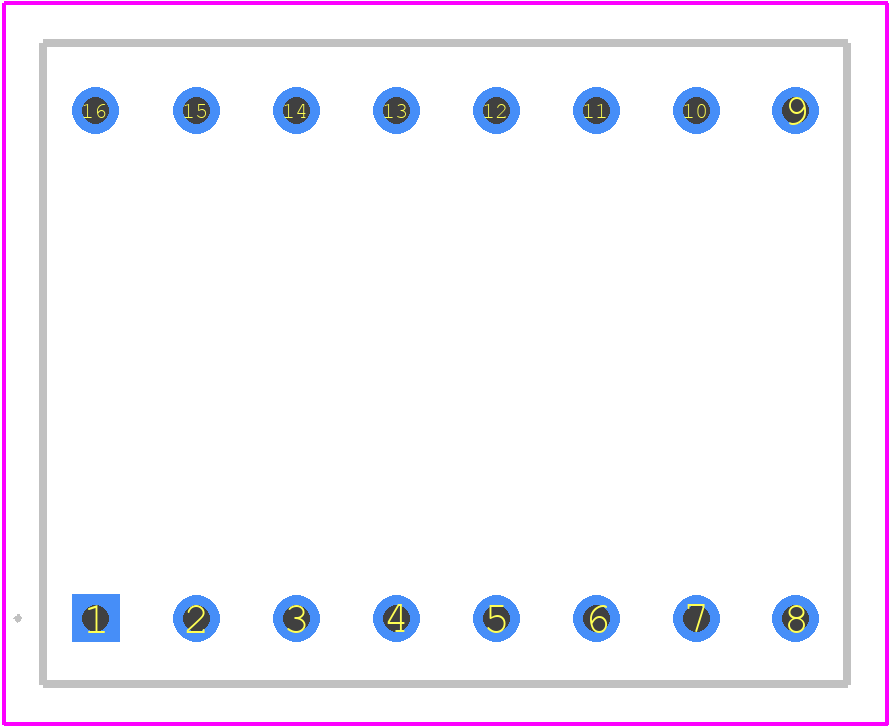

LDD-A402NI - Lumex PCB footprint - Other - Other - LDD-A402NI-1
click to zoom
3D Models
LDD-A402NI - Lumex - 3D model - Other - LDD-A402NI-1
click to zoom

LDD-A402NI Details

  • Manufacturer Part Number:

    LDD-A402NI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    10.2 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    568 nm

LDD-A402NI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDD-A402NI is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the device, and to follow proper handling and storage procedures to prevent moisture ingress.
  • The typical response time of the LDD-A402NI is around 10-20 microseconds, although this can vary depending on the specific application and operating conditions.
  • Yes, the LDD-A402NI can be used in outdoor applications, but it is recommended to apply a suitable protective coating or enclosure to protect the device from environmental factors such as UV, moisture, and extreme temperatures.
  • The LDD-A402NI can be interfaced with a microcontroller using a digital output, such as a TTL or CMOS signal. The device can be connected directly to a microcontroller's digital input pin, and the output can be read using a digital input function.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-A402NI Overview

Use the download button to access the LDD-A402NI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-A, or try a keyword search, such as LED Displays
