LDD-A514RI - Lumex

Description: 0.56" 7 SEGMENTS DUAL DIGIT DISPLAY, 635nm RED CHIPS, GRAY FACE WITH WHITE SEGMENTS, COMMON ANODE, RIGHT DECIMAL PLACE

Download LDD-A514RI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

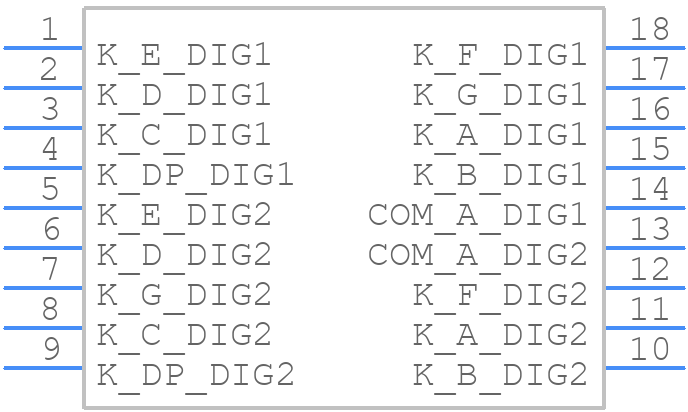

LDD-A514RI - Lumex - PCB symbol
click to zoom
PCB Footprints

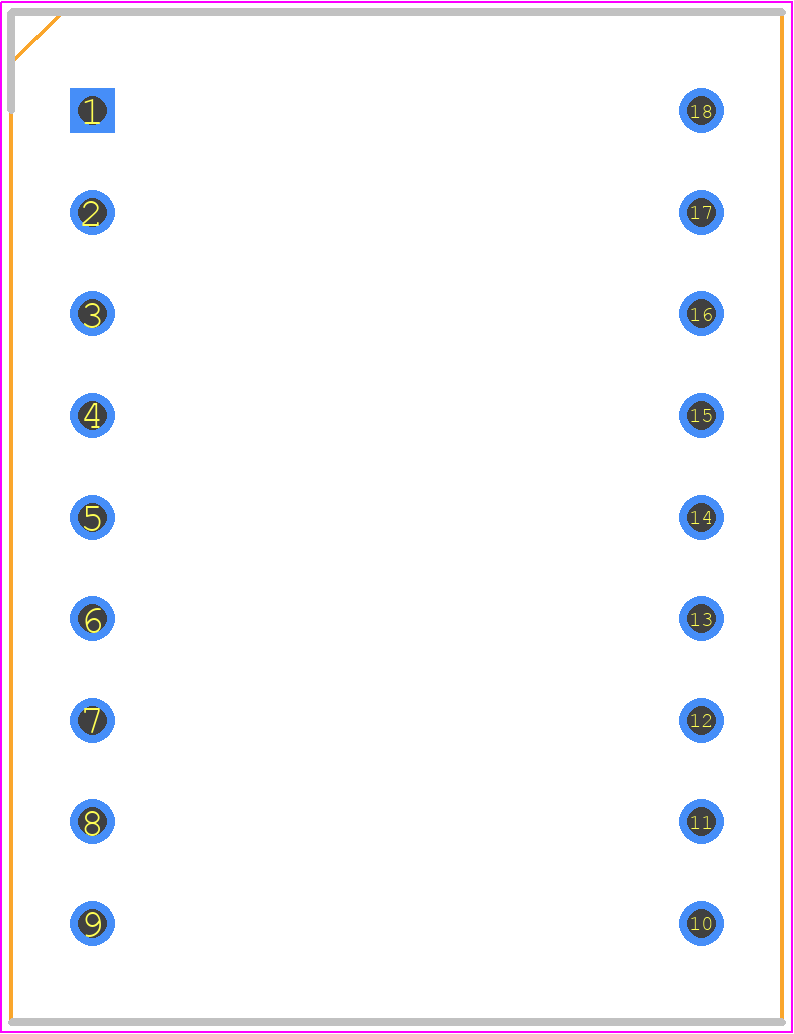

LDD-A514RI - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 18-PIN DIP
click to zoom
3D Models
LDD-A514RI - Lumex - 3D model - Dual-In-Line Sockets - 18-PIN DIP
click to zoom

LDD-A514RI Details

  • Manufacturer Part Number:

    LDD-A514RI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    635 nm

LDD-A514RI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDD-A514RI is -40°C to 85°C, but it can be customized to meet specific application requirements.
  • To ensure reliability in high-vibration environments, it is recommended to follow proper mounting and installation procedures, and to consider using additional mechanical support or vibration dampening measures if necessary.
  • Yes, the LDD-A514RI can be used in outdoor applications, but it is recommended to use a suitable enclosure or protective coating to protect the device from environmental factors such as moisture, dust, and UV radiation.
  • The typical lead time for custom orders of LDD-A514RI can vary depending on the specific requirements and quantity, but it is typically around 6-12 weeks.
  • Yes, it is recommended to handle the LDD-A514RI with care to avoid damage to the device or injury to personnel. Avoid touching the device's electrical contacts, and use proper electrostatic discharge (ESD) protection measures when handling the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-A514RI Overview

Use the download button to access the LDD-A514RI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-A, or try a keyword search, such as LED Displays
