LDD-E302NI-RA footprint, schematic symbol and 3D model by Lumex

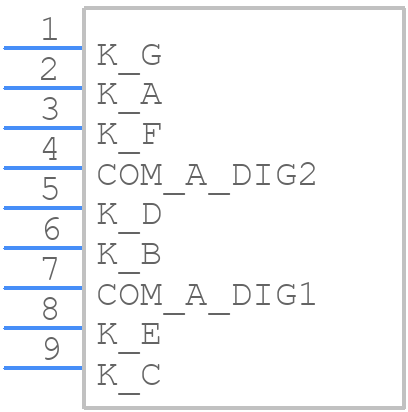

Symbol

PCB Footprints

3D Models

LDD-E302NI-RA Details

The recommended operating temperature range for the LDD-E302NI-RA is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
To ensure reliability in high-humidity environments, it is recommended to follow proper soldering and cleaning procedures, and to apply a conformal coating to protect the device from moisture.
The typical response time of the LDD-E302NI-RA is around 10-20 microseconds, although this can vary depending on the specific application and operating conditions.
Yes, the LDD-E302NI-RA can be used in outdoor applications, but it is recommended to provide additional protection against environmental factors such as UV radiation, temperature extremes, and moisture.
To prevent damage during assembly, it is recommended to handle the LDD-E302NI-RA by the edges, avoid touching the optical surfaces, and use anti-static precautions to prevent ESD damage.
