LDD-E302NI - Lumex

Description: 0.30" 7 SETMENTS DUAL DIGIT DISPLAY, 565nm GREEN CHIPS, GRAY FACE WITH WHITE SETMENTS, MULTIPLEXED, COMMON ANODE

Download LDD-E302NI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

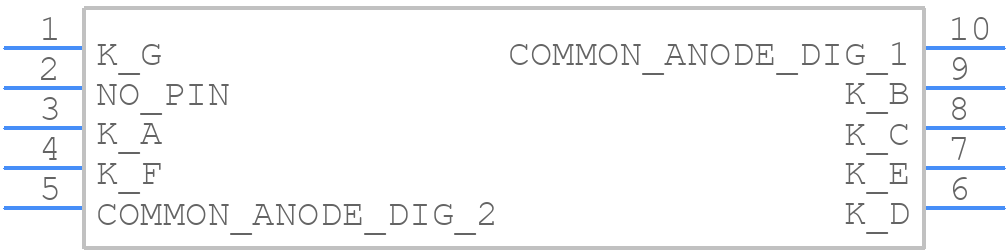

LDD-E302NI - Lumex - PCB symbol
click to zoom
PCB Footprints
LDD-E302NI - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP-10_2024
click to zoom
3D Models
LDD-E302NI - Lumex - 3D model - Dual-In-Line Sockets - DIP-10_2024
click to zoom

LDD-E302NI Details

  • Manufacturer Part Number:

    LDD-E302NI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    568 nm

LDD-E302NI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDD-E302NI is -40°C to 85°C, but it can withstand storage temperatures from -40°C to 100°C.
  • To ensure reliability in high-humidity environments, it is recommended to use a conformal coating or potting compound to protect the device from moisture. Additionally, the device should be stored in a dry, clean environment when not in use.
  • The typical forward voltage drop of the LDD-E302NI is around 2.5V to 3.5V, depending on the operating current and temperature.
  • Yes, the LDD-E302NI can be used in outdoor applications, but it is recommended to use a suitable enclosure or housing to protect the device from environmental factors such as UV, moisture, and extreme temperatures.
  • The maximum allowable current for the LDD-E302NI is 30mA, but it is recommended to operate the device at a maximum current of 20mA to ensure reliability and longevity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-E302NI Overview

Use the download button to access the LDD-E302NI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-E, or try a keyword search, such as LED Displays
