Part Image

LDD-E304NI-RA - Lumex

Description: Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 2V 10mA 0.591" H x 0.610" W x 0.283" D (15.00mm x 15.50mm x 7.20mm) 9-SIP Right Angle

Download LDD-E304NI-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

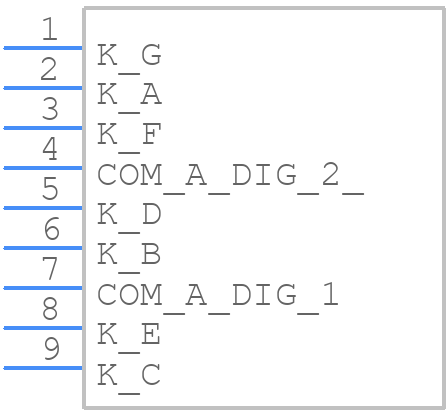

Symbol
LDD-E304NI-RA - Lumex - PCB symbol
click to zoom
PCB Footprints
LDD-E304NI-RA - Lumex PCB footprint - Other - Other - 9-SIP Right Angle
click to zoom
3D Models
LDD-E304NI-RA - Lumex - 3D model - Other - 9-SIP Right Angle
click to zoom

LDD-E304NI-RA Details

  • Manufacturer Part Number:

    LDD-E304NI-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.1 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

LDD-E304NI-RA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDD-E304NI-RA is -20°C to 70°C.
  • The LDD-E304NI-RA uses a serial interface, specifically the SPI (Serial Peripheral Interface) protocol, to communicate with a microcontroller or other host device.
  • The typical current consumption of the LDD-E304NI-RA is around 20mA, but this can vary depending on the display mode, brightness, and other factors.
  • Yes, the brightness of the LDD-E304NI-RA can be adjusted through the serial interface by sending specific commands to control the display's brightness.
  • The LDD-E304NI-RA is compatible with 5V logic levels, but it can also be used with 3.3V logic levels with proper level shifting or voltage translation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-E304NI-RA Overview

Use the download button to access the LDD-E304NI-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-E, or try a keyword search, such as LED Displays
