LDD-F304NI-RA - Lumex

Description: LED Displays & Accessories .3" Dual Right Angle Red

Download LDD-F304NI-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

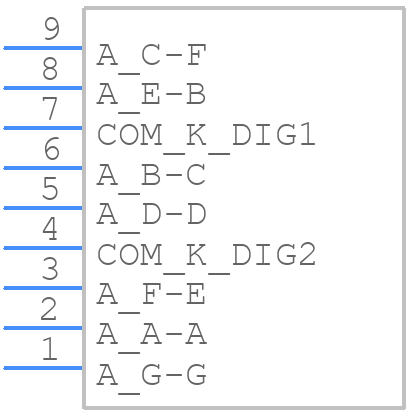

Symbol
LDD-F304NI-RA - Lumex - PCB symbol
click to zoom
PCB Footprints
LDD-F304NI-RA - Lumex PCB footprint - Other - Other - LDD-F304NI-RA-1
click to zoom
3D Models
LDD-F304NI-RA - Lumex - 3D model - Other - LDD-F304NI-RA-1
click to zoom

LDD-F304NI-RA Details

  • Manufacturer Part Number:

    LDD-F304NI-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.1 V

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

LDD-F304NI-RA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LDD-F304NI-RA is -40°C to 85°C.
  • Yes, LDD-F304NI-RA is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
  • The typical forward voltage drop of LDD-F304NI-RA is around 1.8-2.2V at a forward current of 20mA.
  • Yes, LDD-F304NI-RA is designed to operate in high-humidity environments and meets the requirements of IEC 60068-2-30 for humidity testing.
  • The recommended storage condition for LDD-F304NI-RA is in a dry, cool place with a temperature range of 5°C to 30°C and relative humidity below 60%.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-F304NI-RA Overview

Use the download button to access the LDD-F304NI-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-F, or try a keyword search, such as LED Displays
