LDD-M514RI-RA - Lumex

Description: LED Displays & Accessories LED Display

Download LDD-M514RI-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

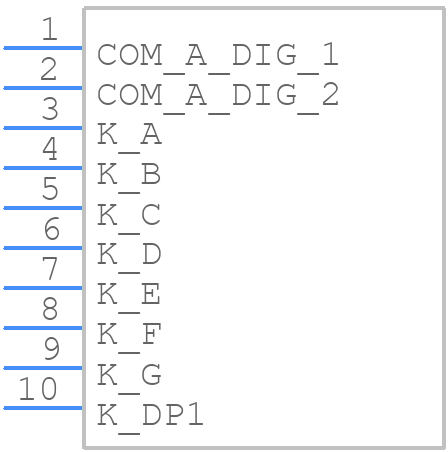

Symbol
LDD-M514RI-RA - Lumex - PCB symbol
click to zoom
PCB Footprints
LDD-M514RI-RA - Lumex PCB footprint - Other - Other - LDD-M514RI-RA-2
click to zoom
3D Models
LDD-M514RI-RA - Lumex - 3D model - Other - LDD-M514RI-RA-2
click to zoom

LDD-M514RI-RA Details

  • Manufacturer Part Number:

    LDD-M514RI-RA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.1 V

  • Number of Characters:

    1

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

LDD-M514RI-RA Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDD-M514RI-RA is -40°C to 85°C.
  • The typical forward voltage drop for the LDD-M514RI-RA is around 2.1V at a forward current of 20mA.
  • The maximum allowable reverse voltage for the LDD-M514RI-RA is 5V.
  • The recommended reflow soldering temperature profile for the LDD-M514RI-RA is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s.
  • Yes, the LDD-M514RI-RA is compatible with lead-free soldering processes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-M514RI-RA Overview

Use the download button to access the LDD-M514RI-RA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-M, or try a keyword search, such as LED Displays
