LDD-SMHTA302RISUGT - Lumex

Description: Displays Panel 2DIGIT 16LED Green CA 20-Pin SMD

Download LDD-SMHTA302RISUGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

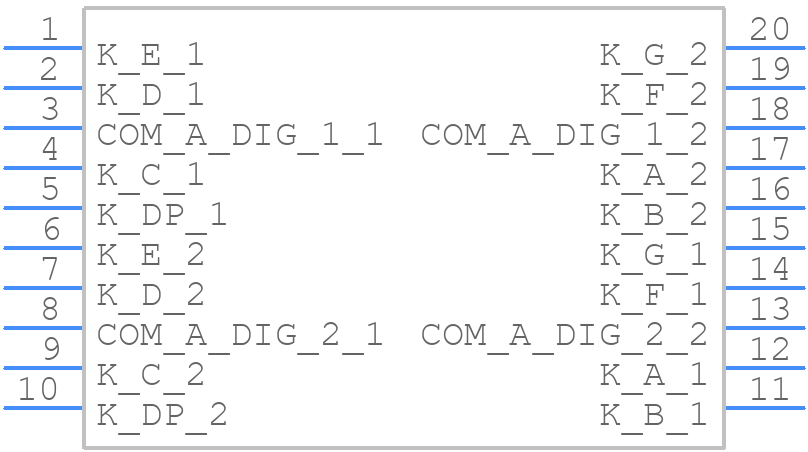

LDD-SMHTA302RISUGT - Lumex - PCB symbol
click to zoom
PCB Footprints

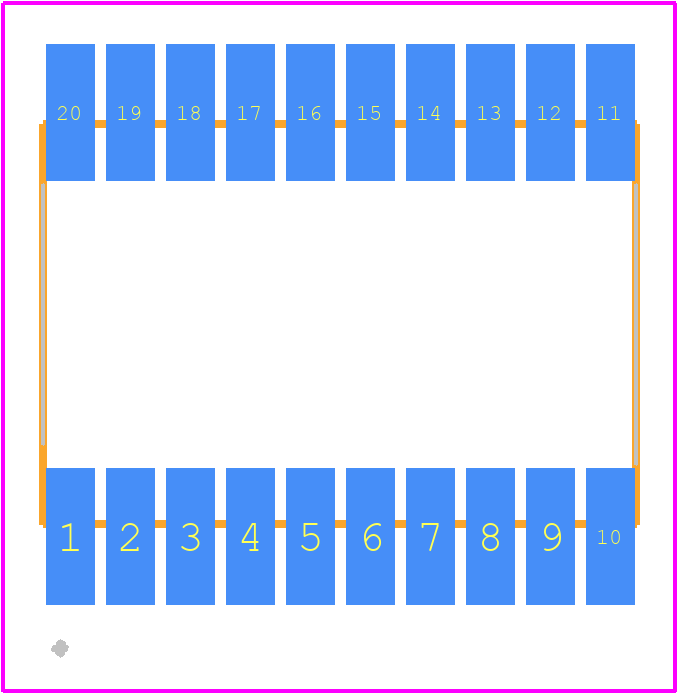

LDD-SMHTA302RISUGT - Lumex PCB footprint - Other - Other - LDD-SMHTA302RISUGT-2
click to zoom
3D Models
LDD-SMHTA302RISUGT - Lumex - 3D model - Other - LDD-SMHTA302RISUGT-2
click to zoom

LDD-SMHTA302RISUGT Details

  • Manufacturer Part Number:

    LDD-SMHTA302RISUGT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.6 V

  • Luminous Intensity-Nom:

    2.5 mcd

  • Number of Characters:

    2

  • Number of Functions:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Packing Method:

    TR

  • Peak Wavelength:

    568 nm

LDD-SMHTA302RISUGT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDD-SMHTA302RISUGT is -40°C to 85°C, as specified by ITW Lumex.
  • To ensure reliability, follow the recommended soldering profile and use a solder with a melting point between 217°C to 220°C. Also, avoid excessive thermal shock and mechanical stress during assembly.
  • The maximum forward current rating for the LDD-SMHTA302RISUGT is 30mA, as specified in the datasheet. Exceeding this rating may reduce the LED's lifespan or cause damage.
  • Store the LEDs in a dry, sealed package or bag with desiccant to maintain a relative humidity below 30%. During assembly, follow the recommended baking procedure to remove any moisture that may have accumulated.
  • The recommended reflow soldering profile for the LDD-SMHTA302RISUGT is a peak temperature of 260°C, with a dwell time above 217°C of 20-30 seconds. The total process time should not exceed 60 seconds.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDD-SMHTA302RISUGT Overview

Use the download button to access the LDD-SMHTA302RISUGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDD-S, or try a keyword search, such as LED Displays
