LDD-SMHTA304RISITR footprint, schematic symbol and 3D model by Lumex

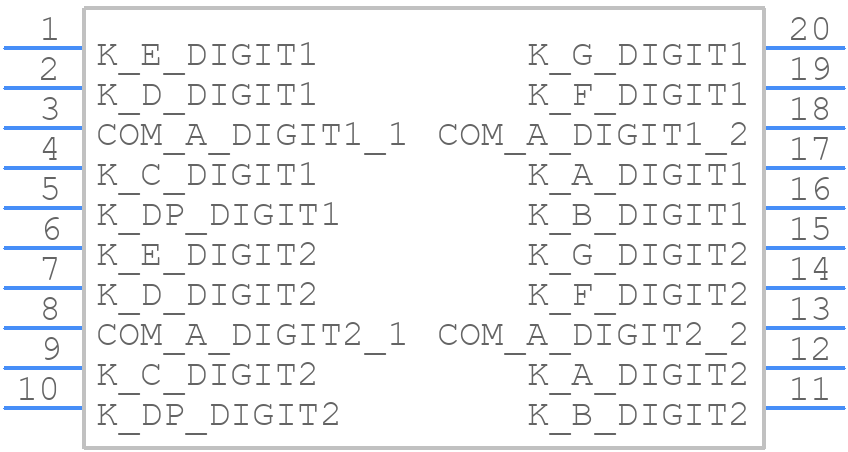

Symbol

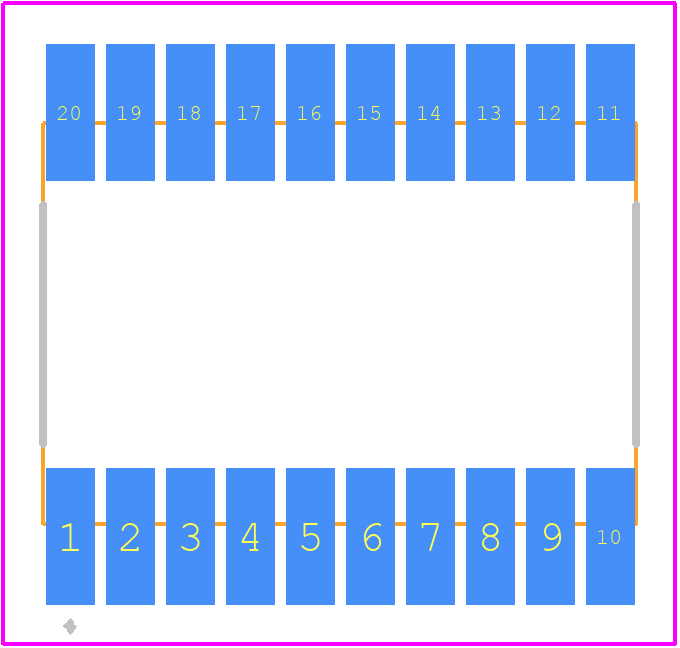

PCB Footprints

3D Models

LDD-SMHTA304RISITR Details

The recommended operating temperature range for the LDD-SMHTA304RISITR is -40°C to 85°C.
The LDD-SMHTA304RISITR is a polarized component, and the anode (positive leg) should be connected to the positive voltage supply, while the cathode (negative leg) should be connected to the negative voltage supply or ground.
The maximum forward current rating for the LDD-SMHTA304RISITR is 30mA. Exceeding this rating may reduce the LED's lifespan or cause damage.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 300°C, and apply a small amount of solder to the pads. Avoid applying excessive heat or pressure, which can damage the LED.
The typical viewing angle for the LDD-SMHTA304RISITR is 120°, which means the LED's brightness and color will be consistent within a 120° cone.

Community Provided

System Verified

Community Approved

Use the download button to access the LDD-SMHTA304RISITR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDD-S, or try a keyword search, such as LED Displays
