LDD036BSR-10 - WENRUN

Description: SPECIFICATIONS FOR LED DISPLAYS 9.2mm(0.36") Seven Segments Dual Digit

Download LDD036BSR-10 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LDD036BSR-10 model

Email notifications will be applied after download.

Send part feedback

Symbol

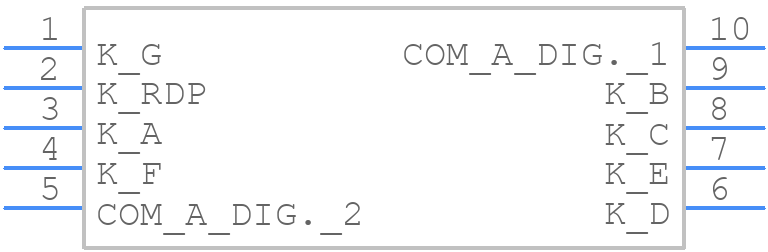

LDD036BSR-10 - WENRUN - PCB symbol

PCB Footprints

LDD036BSR-10 - WENRUN PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-PDIP (15mm x 14mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDD036BSR-10
Part Number LDD036BSR-10
Manufacturer WENRUN
Pin Count 10
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 10-PDIP (15mm x 14mm)
Released Date Apr 16, 2023
Last Modified Date Apr 16, 2023 10:52 AM UTC
Pinout / Pin List Click Here (Member Only)

LDD036BSR-10 Details

Manufacturer Part Number:
LDD036BSR-10
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd
Color@Wavelength:
Red
Configuration:
Common Anode
Display Height:
9.2 mm
Number of Characters:
2
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
660 nm

Trust Checks

Expert Contribution

System Verified

Community Approved

LDD036BSR-10 Overview

Use the download button to access the LDD036BSR-10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LDD03, or try a keyword search, such as LED Displays
