LDD056BUE-101-03 - WENRUN

Description: Display: LED; 7-segment; 14.22mm; 0.56"; No.char: 2; red; 11.2mcd

Download LDD056BUE-101-03 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LDD056BUE-101-03 model

Email notifications will be applied after download.

Send part feedback

Symbol

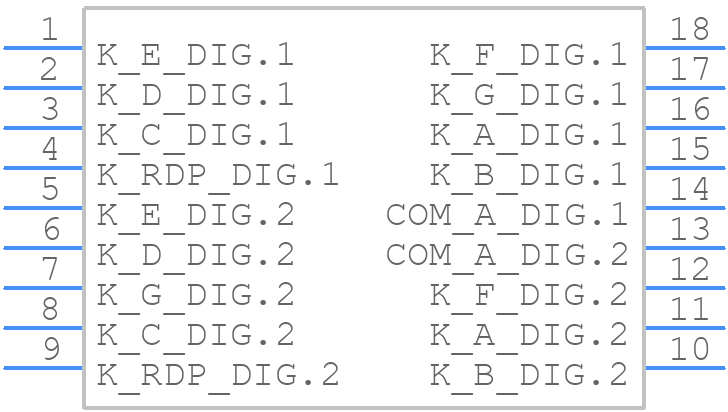

LDD056BUE-101-03 - WENRUN - PCB symbol

PCB Footprints

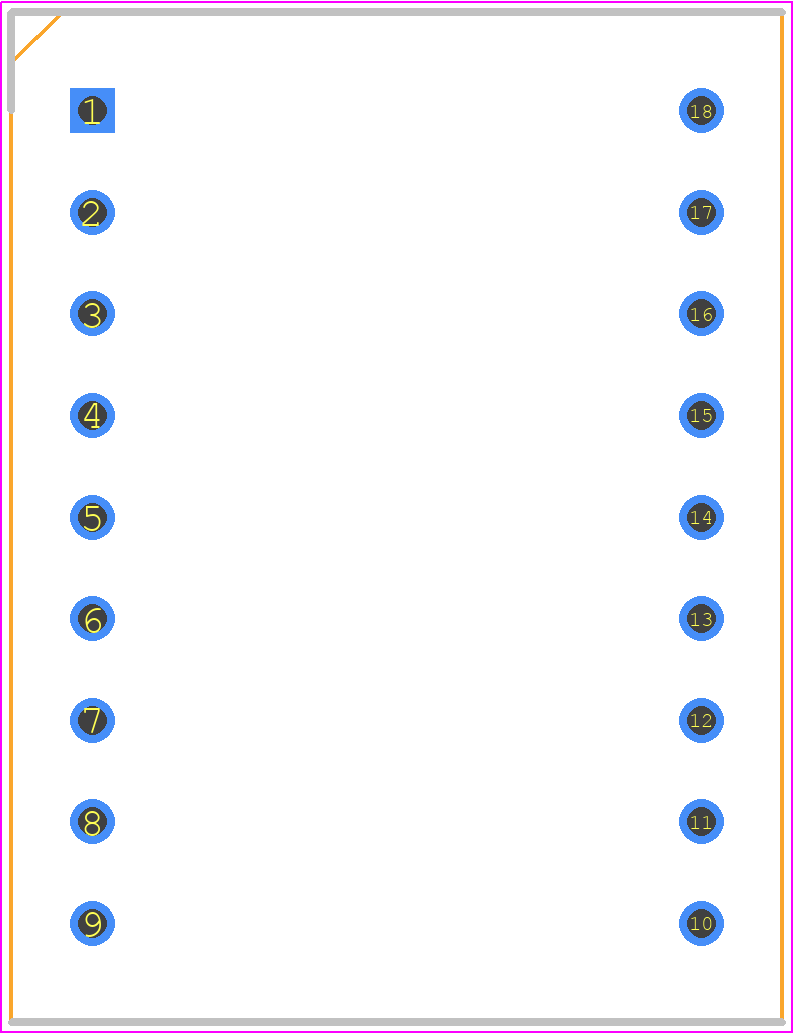

LDD056BUE-101-03 - WENRUN PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 25 x 19 x 8mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDD056BUE-101-03
Part Number LDD056BUE-101-03
Manufacturer WENRUN
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 25 x 19 x 8mm
Released Date Apr 20, 2025
Last Modified Date Apr 20, 2025 4:35 AM UTC
Pinout / Pin List Click Here (Member Only)

LDD056BUE-101-03 Details

Manufacturer Part Number:
LDD056BUE-101-03
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

LDD056BUE-101-03 Overview

Use the download button to access the LDD056BUE-101-03 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LDD05, or try a keyword search, such as LED Displays
