LDD080AUE-101A-01 - WENRUN

Description: Display: LED; 7-segment; 20.32mm; 0.8"; No.char: 2; red; 11.6mcd

Download LDD080AUE-101A-01 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LDD080AUE-101A-01 model

Email notifications will be applied after download.

Send part feedback

Symbol

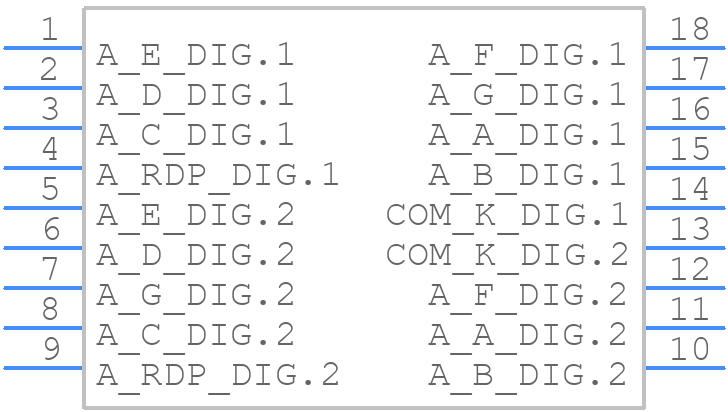

LDD080AUE-101A-01 - WENRUN - PCB symbol

PCB Footprints

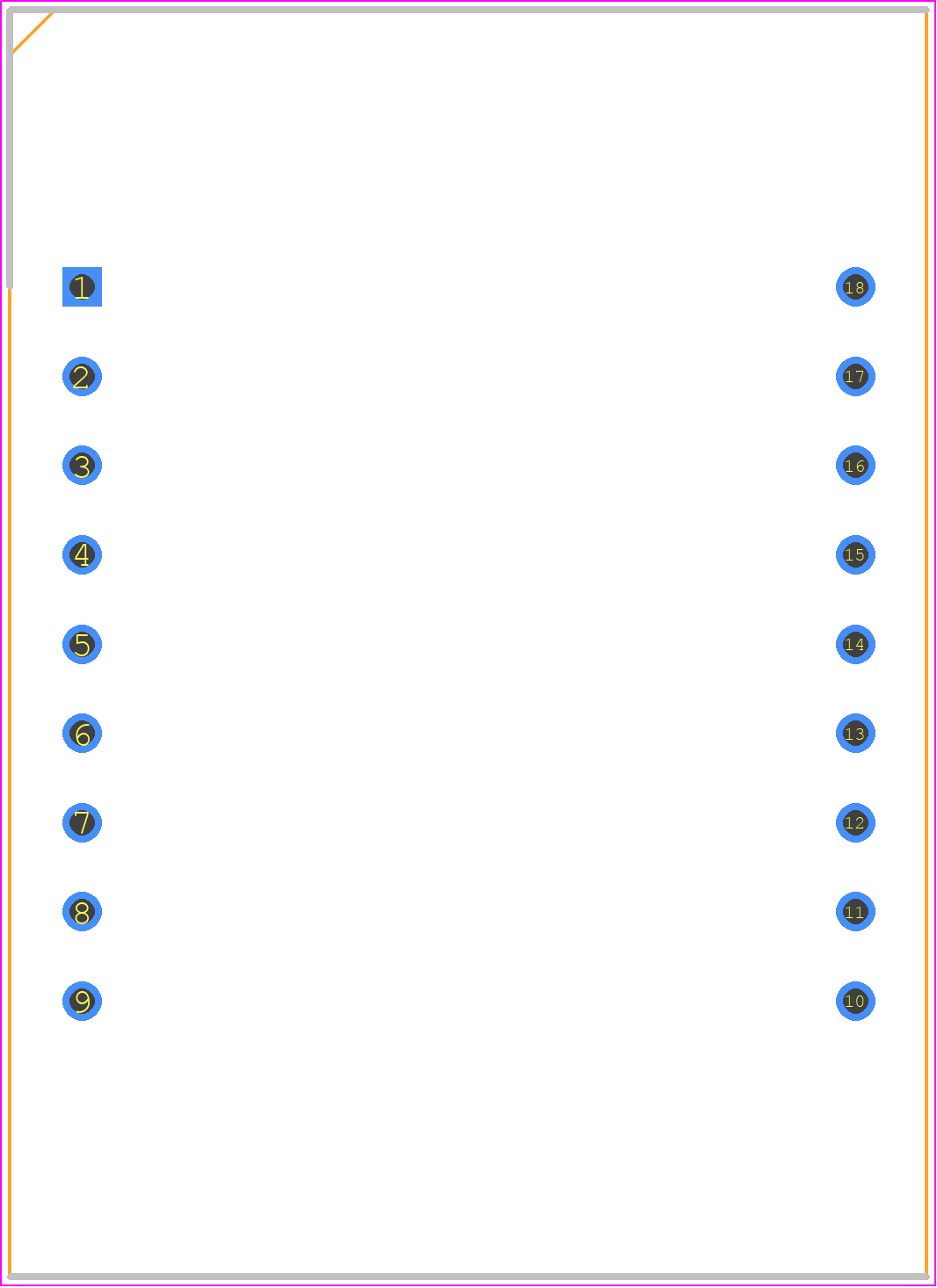

LDD080AUE-101A-01 - WENRUN PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 18-Dip (1.41'', 1.0157'')

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDD080AUE-101A-01
Part Number LDD080AUE-101A-01
Manufacturer WENRUN
Pin Count 18
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 18-Dip (1.41'', 1.0157'')
Released Date May 29, 2023
Last Modified Date May 29, 2023 11:06 AM UTC
Pinout / Pin List Click Here (Member Only)

LDD080AUE-101A-01 Details

Manufacturer Part Number:
LDD080AUE-101A-01
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

LDD080AUE-101A-01 Overview

Use the download button to access the LDD080AUE-101A-01 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LDD08, or try a keyword search, such as LED Displays
