- Part Number LDM-13488MI
- Manufacturer Lumex
- Pin Count 16
- Part Category Display
- Package Category Other

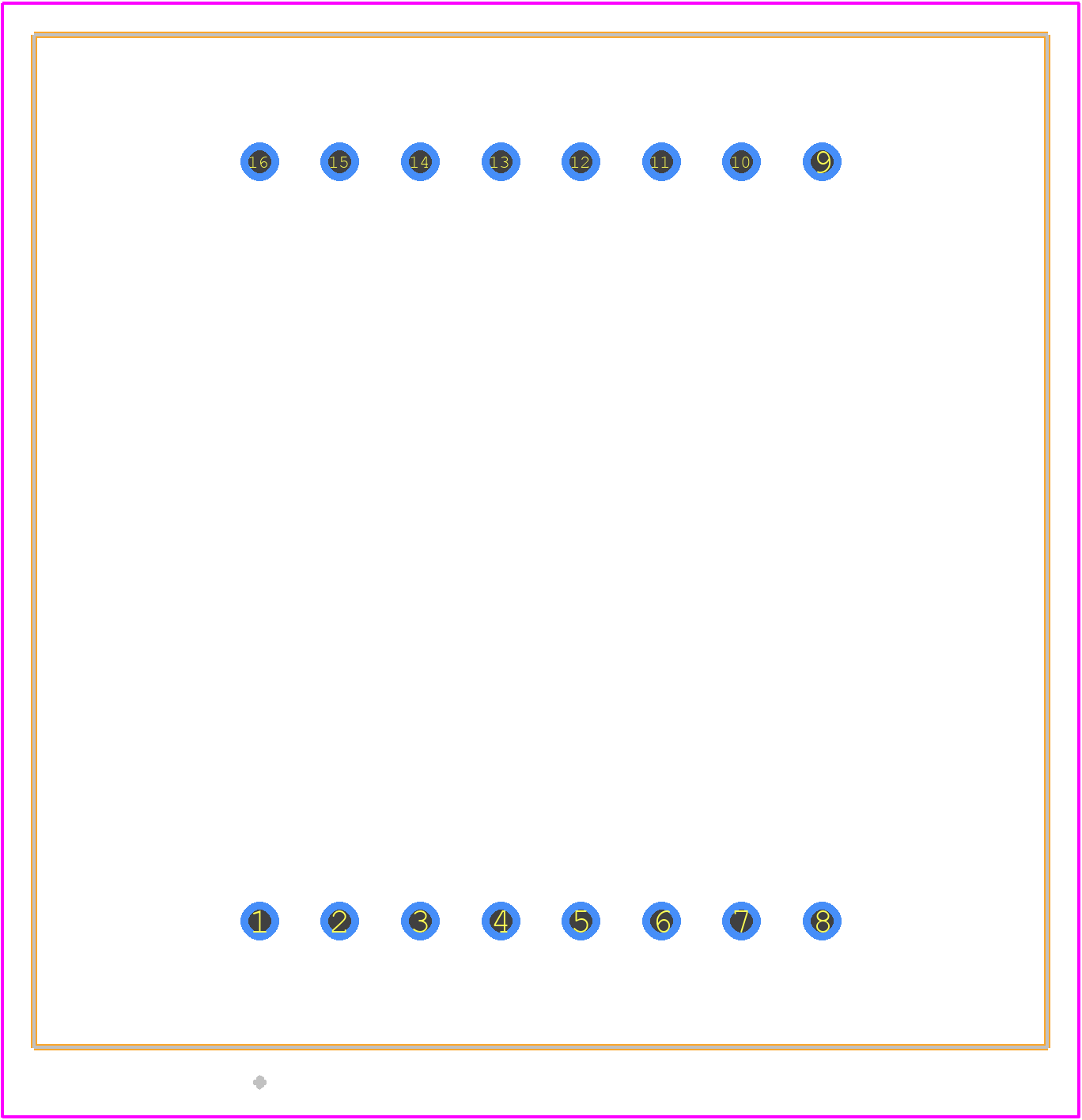

- Footprint Name Other - LDM-13488MI-4
- Released Date Nov 5, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LDM-13488MI Details
-
Manufacturer Part Number:
LDM-13488MI
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8541.40.20.00
-
Manufacturer:
ITW Lumex
-
YTEOL:
5.37
-
Color:
RED
-
Configuration:
COMMON CATHODE, 1 DIGIT
-
Display Height:
31 mm
-
Forward Current-Max:
0.03 A
LDM-13488MI Frequently Asked Questions (FAQs)
-
The recommended storage temperature for LDM-13488MI is -20°C to 40°C (-4°F to 104°F) to ensure optimal performance and longevity.
-
While the LDM-13488MI is designed to operate in normal humidity conditions, it's not recommended for use in high-humidity environments (>80% RH) without proper sealing or protection to prevent moisture ingress.
-
The maximum soldering temperature for the LDM-13488MI is 260°C (500°F) for a maximum of 10 seconds to prevent damage to the device.
-
The LDM-13488MI is not designed for outdoor use and should be used in indoor applications only. If outdoor use is required, additional protection and sealing measures should be taken to ensure the device's reliability.
-
The recommended cleaning method for the LDM-13488MI is to use a soft, dry brush or a lint-free cloth to remove any debris or contaminants. Avoid using harsh chemicals, solvents, or abrasive materials that may damage the device.
Trust Checks
Expert Contribution
System Verified
Community Approved
LDM-13488MI Overview

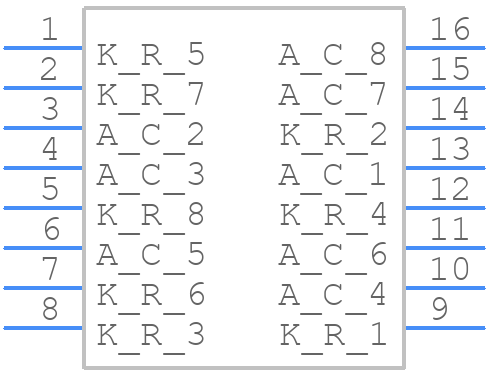

Use the download button to access the LDM-13488MI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDM-1,
or try a keyword search, such as LED Displays
