LDM182G4505CC001 - Murata Electronics

Description: Center Frequency 2450.00MHz, Frequency Range2400.00MHz to 2500.00MHz. Balance Impedance (Nominal): 50ohm, Differential Impedance (Nominal): 50 ohm

Download LDM182G4505CC001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

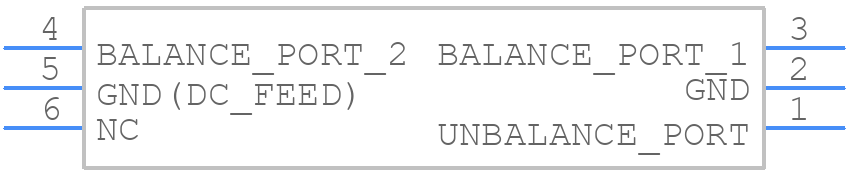

LDM182G4505CC001 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints
LDM182G4505CC001 - Murata Electronics PCB footprint - Other - Other - LDM182G4505CC001
click to zoom
3D Models
LDM182G4505CC001 - Murata Electronics - 3D model - Other - LDM182G4505CC001
click to zoom

LDM182G4505CC001 Details

  • Manufacturer Part Number:

    LDM182G4505CC001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Cut-off Frequency-Max:

    2500 MHz

  • Cut-off Frequency-Min:

    2400 MHz

  • Height:

    0.4 mm

  • Insertion Loss:

    0.98 dB

  • Length:

    1.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, PAPER, 7 INCH

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    0.8 mm

LDM182G4505CC001 Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the LDM182G4505CC001 can be found in the Murata Land Pattern document, which provides detailed information on the recommended pad layout and dimensions for optimal performance and reliability.
  • During reflow soldering, the LDM182G4505CC001 should be placed on the PCB with the component side facing upwards. The recommended reflow profile is 260°C peak temperature, with a ramp-up rate of 3°C/s and a dwell time of 30-60 seconds above 220°C.
  • The maximum allowable current for the LDM182G4505CC001 inductor is 18.2A, as specified in the datasheet. Exceeding this current may cause the inductor to overheat or fail prematurely.
  • The LDM182G4505CC001 inductor is designed to operate up to 1MHz, but its behavior under high-frequency conditions may vary depending on the specific application and circuit design. Engineers should consult the datasheet and application notes for guidance on high-frequency operation.
  • The LDM182G4505CC001 inductor should be stored in a dry, cool place, away from direct sunlight and moisture. It should be handled with care to avoid mechanical stress, and electrostatic discharge (ESD) precautions should be taken to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDM182G4505CC001 Overview

Use the download button to access the LDM182G4505CC001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDM18, or try a keyword search, such as RF Transformers

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
