LDP01-33AY footprint, schematic symbol and 3D model by STMicroelectronics

Symbol

click to zoom

PCB Footprints

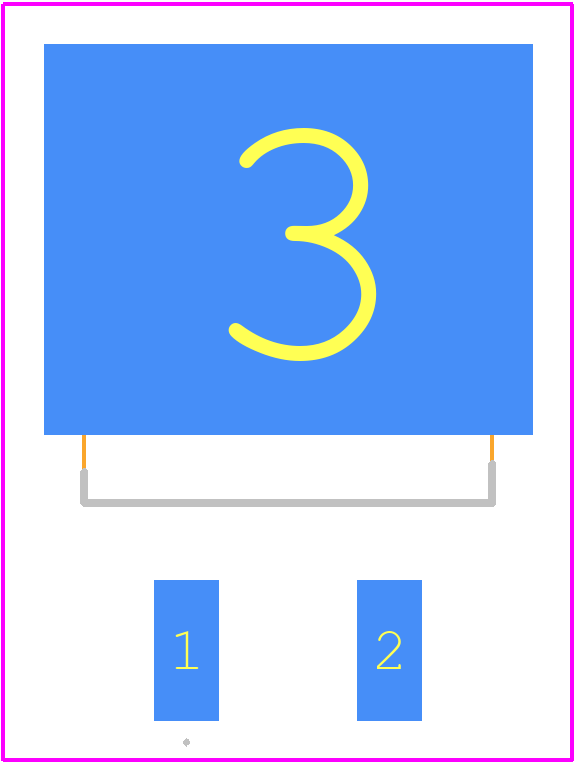

LDP01-33AY - STMicroelectronics PCB footprint - Other - Other - LDP01-33AY-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDP01-33AY
Part Number LDP01-33AY
Manufacturer STMicroelectronics
Pin Count 3
Part Category TVS Diode (Uni-directional)
Package Category Other
Footprint Name Other - LDP01-33AY-1
Released Date Sep 1, 2022
Last Modified Date Jan 8, 2026 2:31 PM UTC
Pinout / Pin List Click Here (Member Only)

LDP01-33AY Details

Manufacturer Part Number:
LDP01-33AY
Brand Name:
STMicroelectronics
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
D2PAK-3/2
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
53 Weeks, 1 Day
Manufacturer:
STMicroelectronics
YTEOL:
8
Breakdown Voltage-Max:
34.3 V
Breakdown Voltage-Min:
31.1 V
Breakdown Voltage-Nom:
32.7 V
Case Connection:
CATHODE
Clamping Voltage-Max:
43.5 V
Configuration:
SINGLE, 1 CHANNEL
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-PSSO-G2
JESD-609 Code:
e3
Moisture Sensitivity Level:
3
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
245
Polarity:
UNIDIRECTIONAL
Reference Standard:
AEC-Q101; IEC-61000-4-2
Rep Pk Reverse Voltage-Max:
28 V
Reverse Current-Max:
1 µA
Reverse Test Voltage:
28 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Position:
SINGLE
