LDQ-M282RI footprint, schematic symbol and 3D model by Lumex

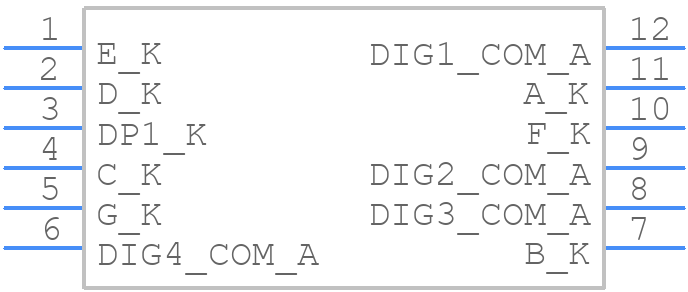

Symbol

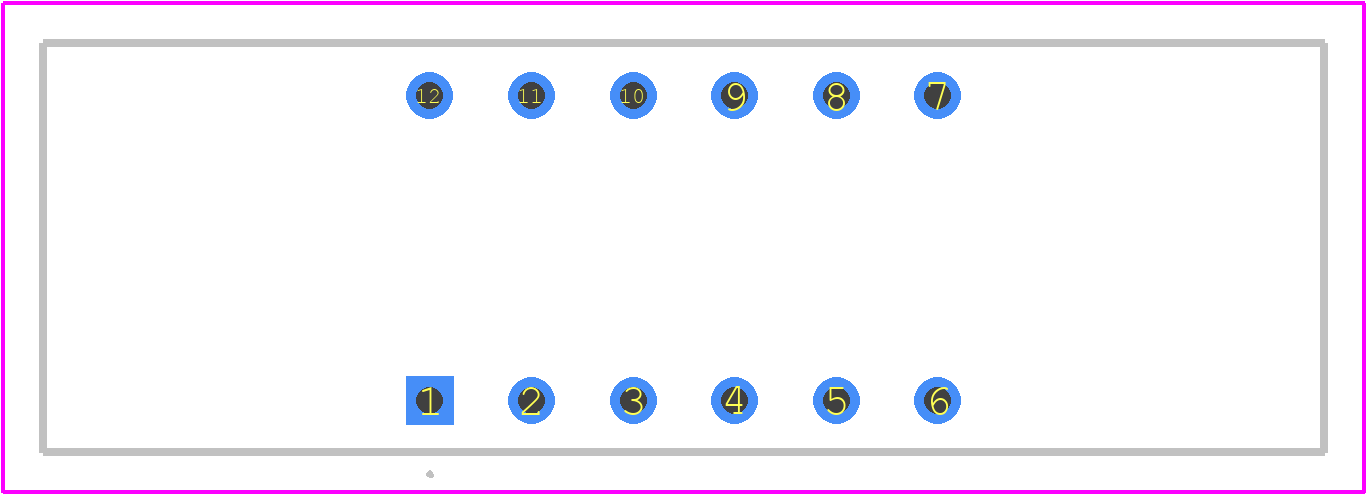

PCB Footprints

3D Models

LDQ-M282RI Details

The recommended operating temperature range for the LDQ-M282RI is -40°C to 85°C, but it can be customized to meet specific application requirements.
To ensure reliability in high-vibration environments, it is recommended to use a secure mounting method, such as screw mounting or adhesive mounting, and to follow the manufacturer's guidelines for vibration testing and validation.
Yes, the LDQ-M282RI can be used in outdoor applications, but it is recommended to use a suitable enclosure or protective coating to protect the device from environmental factors such as moisture, dust, and UV radiation.
The typical response time of the LDQ-M282RI is around 10-20 microseconds, but this can vary depending on the specific application and operating conditions.
The LDQ-M282RI can be interfaced with a microcontroller or other digital systems using a digital output, such as a TTL or CMOS output, and can be connected directly to a microcontroller or other digital system using a suitable interface circuit.

Community Provided

System Verified

Community Approved

Use the download button to access the LDQ-M282RI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDQ-M, or try a keyword search, such as LED Displays
