Part Image

LDQ-M286RI - Lumex

Description: 7 Segment LED Display 4 Digit 30 mA 2.3 V Common Anode Through Hole

Download LDQ-M286RI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

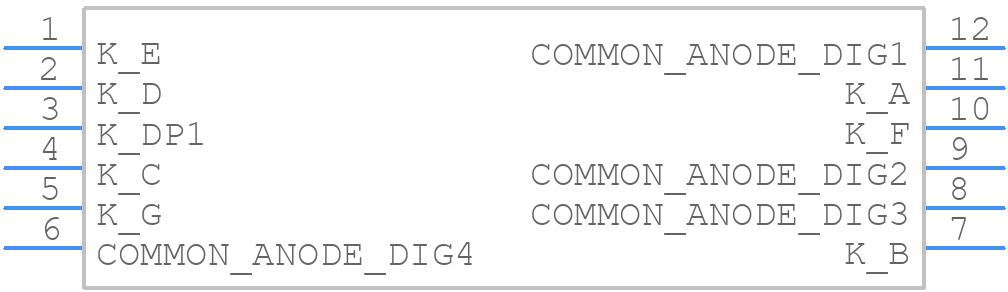

Symbol
LDQ-M286RI - Lumex - PCB symbol
click to zoom

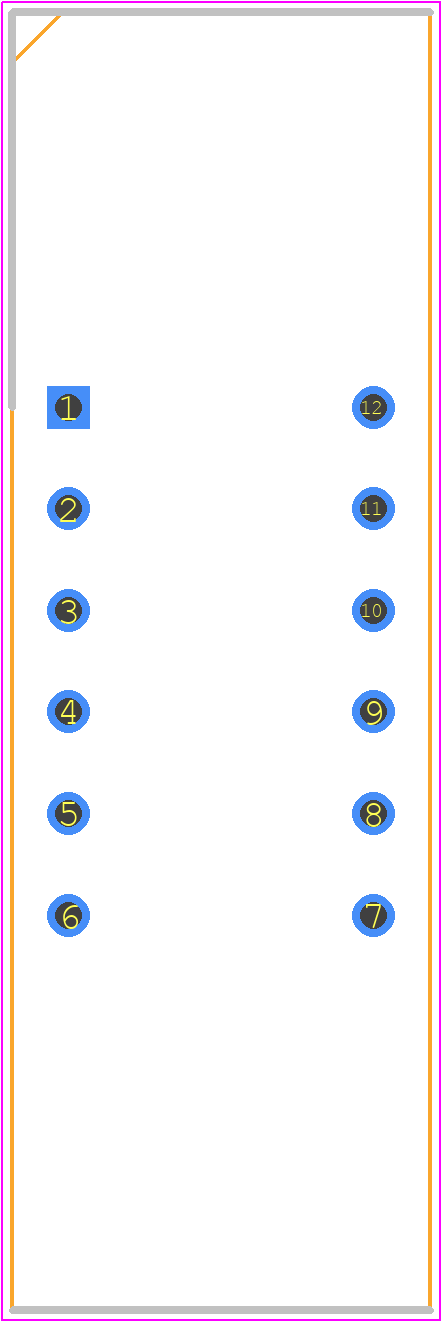

PCB Footprints
LDQ-M286RI - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LDQ-M284RI
click to zoom
3D Models
LDQ-M286RI - Lumex - 3D model - Dual-In-Line Sockets - LDQ-M284RI
click to zoom

LDQ-M286RI Details

  • Manufacturer Part Number:

    LDQ-M286RI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Orange-Red

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    7 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2 V

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

LDQ-M286RI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDQ-M286RI is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • To ensure reliability in high-humidity environments, it's recommended to use a conformal coating or potting compound to protect the device from moisture. Additionally, follow proper handling and storage procedures to prevent moisture absorption.
  • The maximum allowable voltage for the LDQ-M286RI is 5.5V, although the recommended operating voltage is 3.3V or 5V. Exceeding the maximum voltage may damage the device.
  • Yes, the LDQ-M286RI can be used in outdoor applications, but it's essential to ensure proper sealing and protection from environmental factors such as UV radiation, moisture, and extreme temperatures.
  • To optimize the optical performance of the LDQ-M286RI, ensure proper alignment of the LED and photodiode, use a suitable lens or reflector, and minimize ambient light interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDQ-M286RI Overview

Use the download button to access the LDQ-M286RI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDQ-M, or try a keyword search, such as LED Displays
