Part Image

LDQ-N514RI - Lumex

Description: LUMEX - LDQ-N514RI - DISPLAY, SEVEN SEGMENT, 14.22MM, RED

Download LDQ-N514RI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

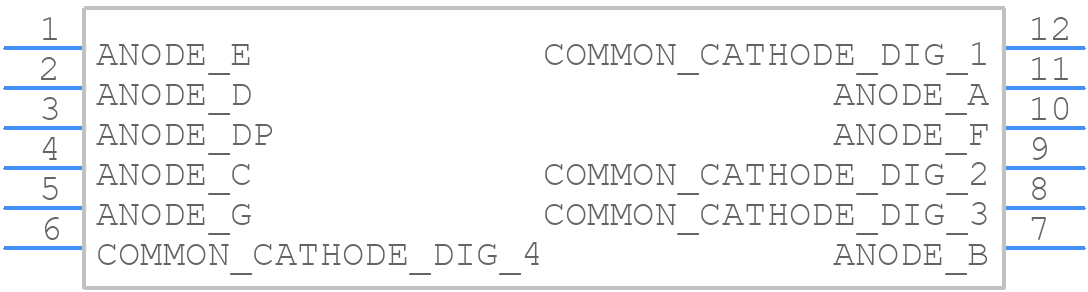

LDQ-N514RI - Lumex - PCB symbol
click to zoom
PCB Footprints

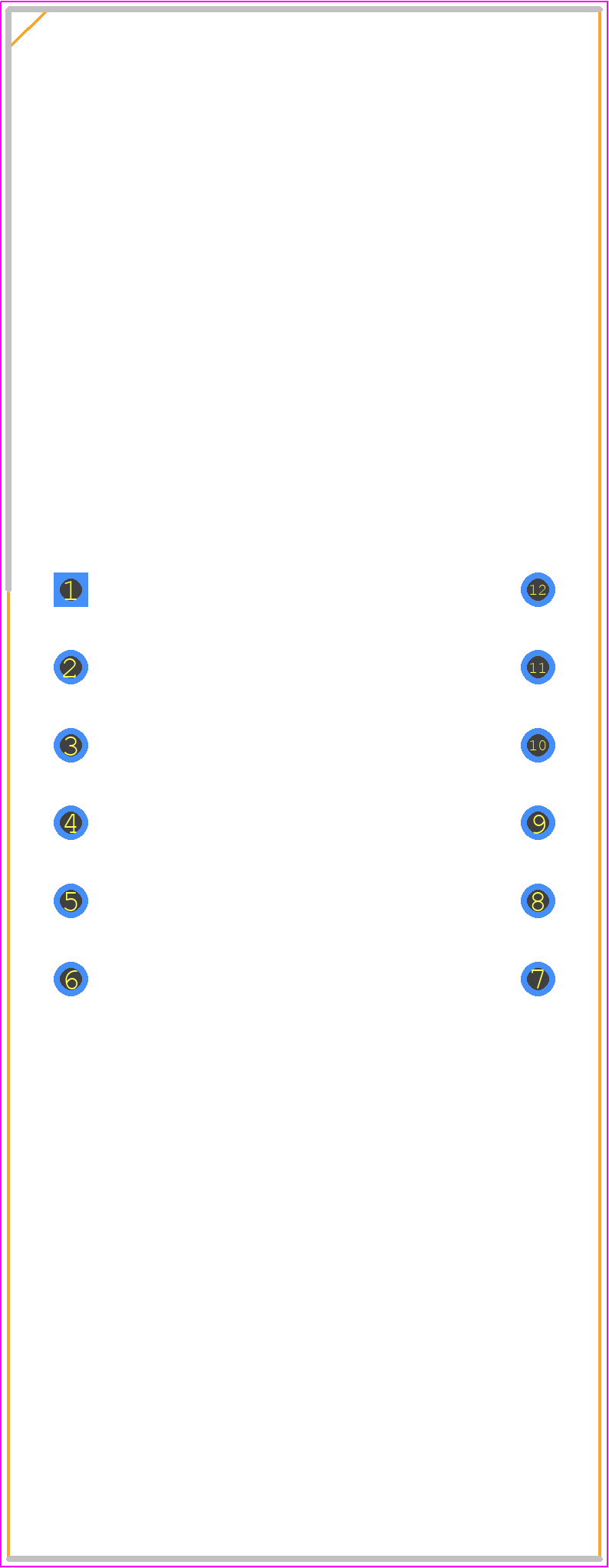

LDQ-N514RI - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12-DIP (0.600", 15.24mm)
click to zoom

LDQ-N514RI Details

  • Manufacturer Part Number:

    LDQ-N514RI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    635 nm

LDQ-N514RI Frequently Asked Questions (FAQs)

  • The recommended storage temperature for LDQ-N514RI is -20°C to 40°C (-4°F to 104°F) with a relative humidity of 60% or less.
  • While LDQ-N514RI is designed for indoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. Consult with ITW Lumex for specific guidance.
  • The maximum operating temperature for LDQ-N514RI is 85°C (185°F). Operating above this temperature may affect the device's performance and lifespan.
  • Handle LDQ-N514RI with ESD-protective equipment and follow standard ESD handling procedures to prevent damage. ITW Lumex recommends using an ESD wrist strap or mat when handling the device.
  • The recommended soldering temperature for LDQ-N514RI is 260°C (500°F) for a maximum of 10 seconds. Exceeding this temperature or time may damage the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDQ-N514RI Overview

Use the download button to access the LDQ-N514RI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LDQ-N, or try a keyword search, such as LED Displays
