Part Image

LDQ-N516RI - Lumex

Description: Display Module - LED Character and Numeric - Red - 7-Segment - 4 Characters - Common Cathode - 1.8Vf - 10mA Test - 12-DIP

Download LDQ-N516RI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

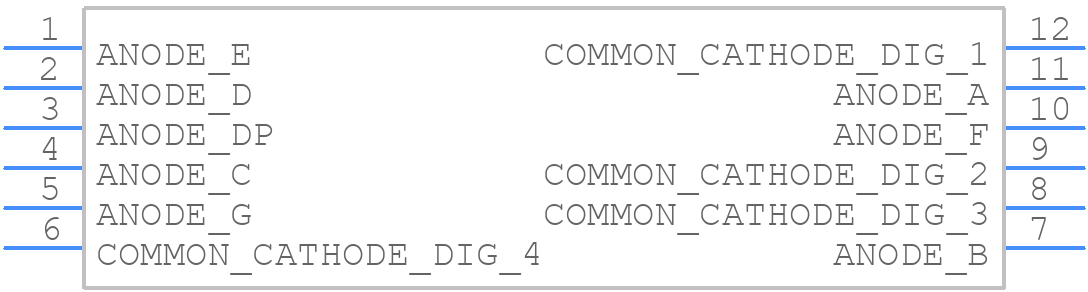

Symbol
LDQ-N516RI - Lumex - PCB symbol
click to zoom

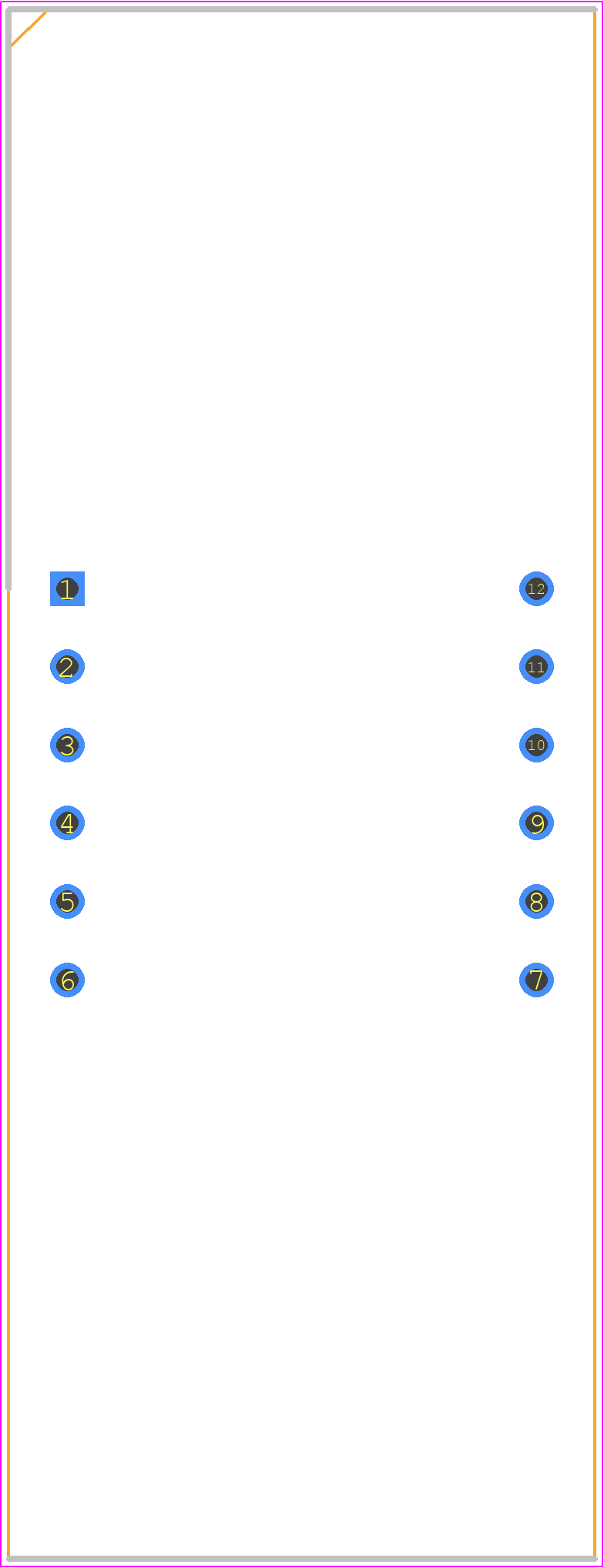

PCB Footprints
LDQ-N516RI - Lumex PCB footprint - Other - Other - LDQ-N516RI
click to zoom
3D Models
LDQ-N516RI - Lumex - 3D model - Other - LDQ-N516RI
click to zoom

LDQ-N516RI Details

  • Manufacturer Part Number:

    LDQ-N516RI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 4 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.1 V

  • Number of Characters:

    4

  • Number of Functions:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

LDQ-N516RI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDQ-N516RI is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • To ensure reliability in high-humidity environments, it's recommended to follow proper handling and storage procedures, and consider applying a conformal coating to protect the device from moisture.
  • The typical lead time for delivery of the LDQ-N516RI can vary depending on the quantity, region, and availability. It's recommended to check with authorized distributors or ITW Lumex directly for the most up-to-date lead time information.
  • Yes, ITW Lumex recommends following a specific soldering profile to ensure reliable assembly. The recommended profile is: 260°C peak temperature, 3°C/s ramp rate, and 30 seconds to 60 seconds dwell time above 220°C.
  • While the LDQ-N516RI is designed for indoor use, it can be used in outdoor applications with proper protection and consideration. It's essential to ensure the device is protected from direct sunlight, moisture, and extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDQ-N516RI Overview

Use the download button to access the LDQ-N516RI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDQ-N, or try a keyword search, such as LED Displays
