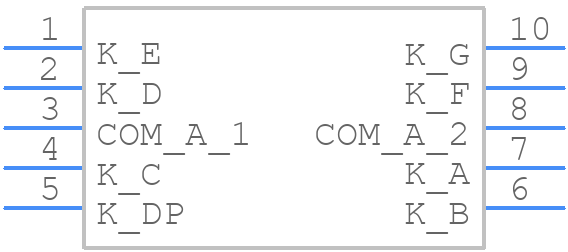

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LDS-A512RI
- Part Number LDS-A512RI
- Manufacturer Lumex
- Pin Count 10
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - DIP-10
- Released Date Oct 5, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LDS-A512RI Details
-
Manufacturer Part Number:
LDS-A512RI
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8541.40.20.00
-
Manufacturer:
ITW Lumex
-
YTEOL:
6
-
Color:
GREEN
-
Color@Wavelength:
Green
-
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
-
Display Height:
14.2 mm
LDS-A512RI Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the LDS-A512RI is -40°C to 85°C, but it can be customized to meet specific application requirements.
-
The LDS-A512RI has built-in overvoltage protection up to 30V, but it's recommended to use an external voltage regulator to ensure stable operation.
-
The typical response time of the LDS-A512RI is around 10-20 microseconds, but it can vary depending on the specific application and operating conditions.
-
Yes, the LDS-A512RI is designed to operate in high-humidity environments, but it's recommended to follow proper sealing and encapsulation procedures to ensure reliability.
-
The maximum current consumption of the LDS-A512RI is around 20mA, but it can vary depending on the specific application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
LDS-A512RI Overview
Use the download button to access the LDS-A512RI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LDS-A,
or try a keyword search, such as LED Displays
