Part Image

LDS-A816RI - Lumex

Description: LED Displays & Accessories LED Display

Download LDS-A816RI Model

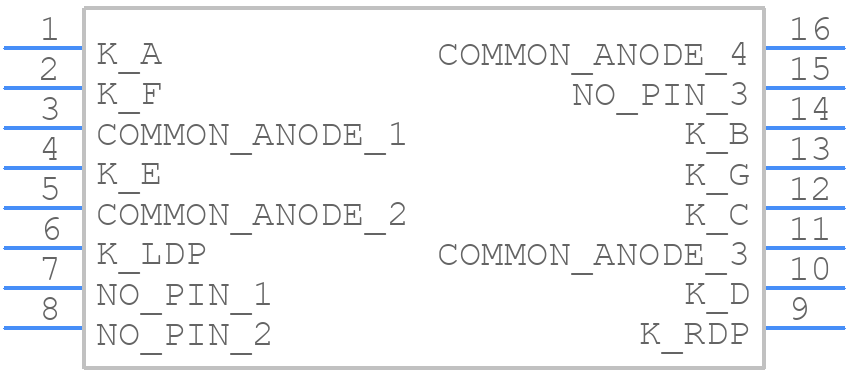

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

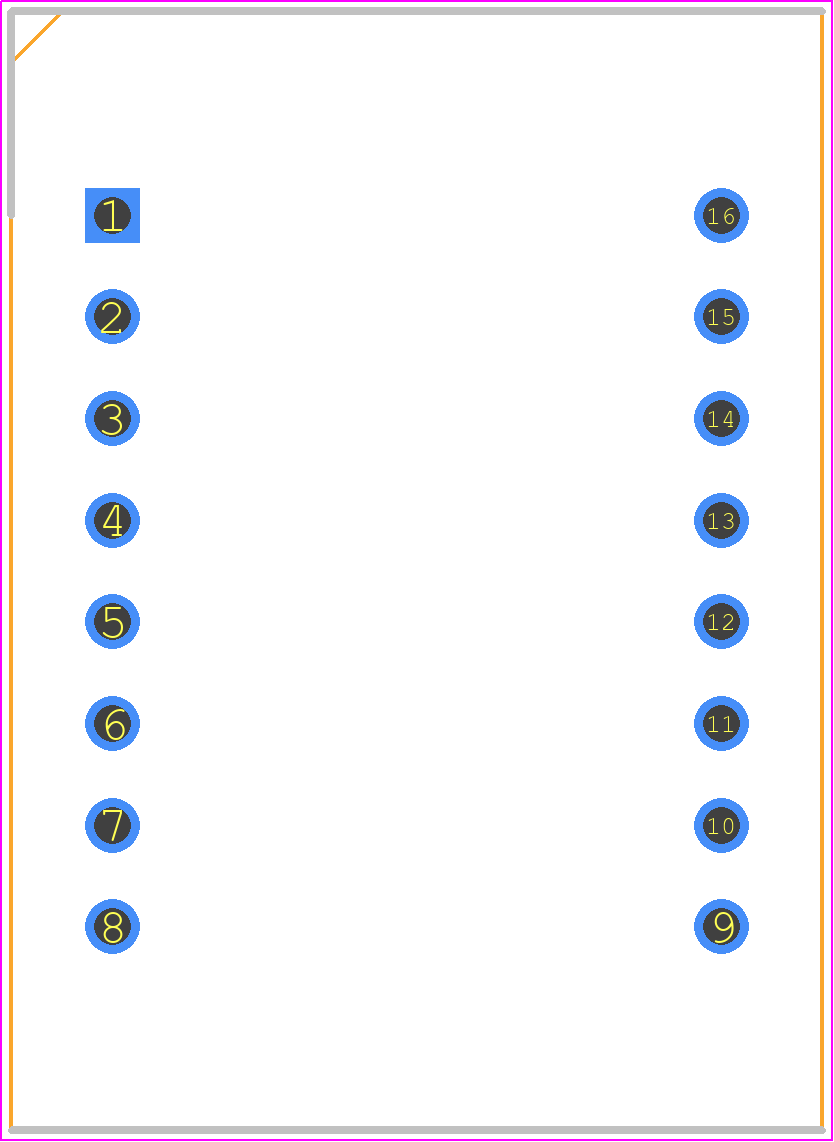

LDS-A816RI - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 16-DIP (0.600", 15.24mm), 13 Leads
click to zoom

LDS-A816RI Details

  • Manufacturer Part Number:

    LDS-A816RI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.4 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.1 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

LDS-A816RI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDS-A816RI is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • To ensure reliability in high-vibration environments, it's recommended to follow proper mounting and installation procedures, and consider using additional mechanical support or vibration dampening measures if necessary.
  • The typical response time of the LDS-A816RI is around 10-20 milliseconds, although this can vary depending on the specific application and operating conditions.
  • While the LDS-A816RI is designed to be rugged and reliable, it's not intended for direct exposure to outdoor or harsh environmental conditions. If used in such conditions, it's recommended to provide additional protection, such as IP67 or higher rated enclosures, to ensure reliability and longevity.
  • The recommended power-up sequence for the LDS-A816RI is to apply power to the VCC pin first, followed by the EN pin. This ensures proper initialization and operation of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDS-A816RI Overview

Use the download button to access the LDS-A816RI schematic symbol and PCB footprint.
