Part Image

LDS-AA12RI - Lumex

Description: Displays Module 1DIGIT 15LED Green CA 10-Pin DIP Module

Download LDS-AA12RI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LDS-AA12RI - Lumex - PCB symbol
click to zoom
PCB Footprints

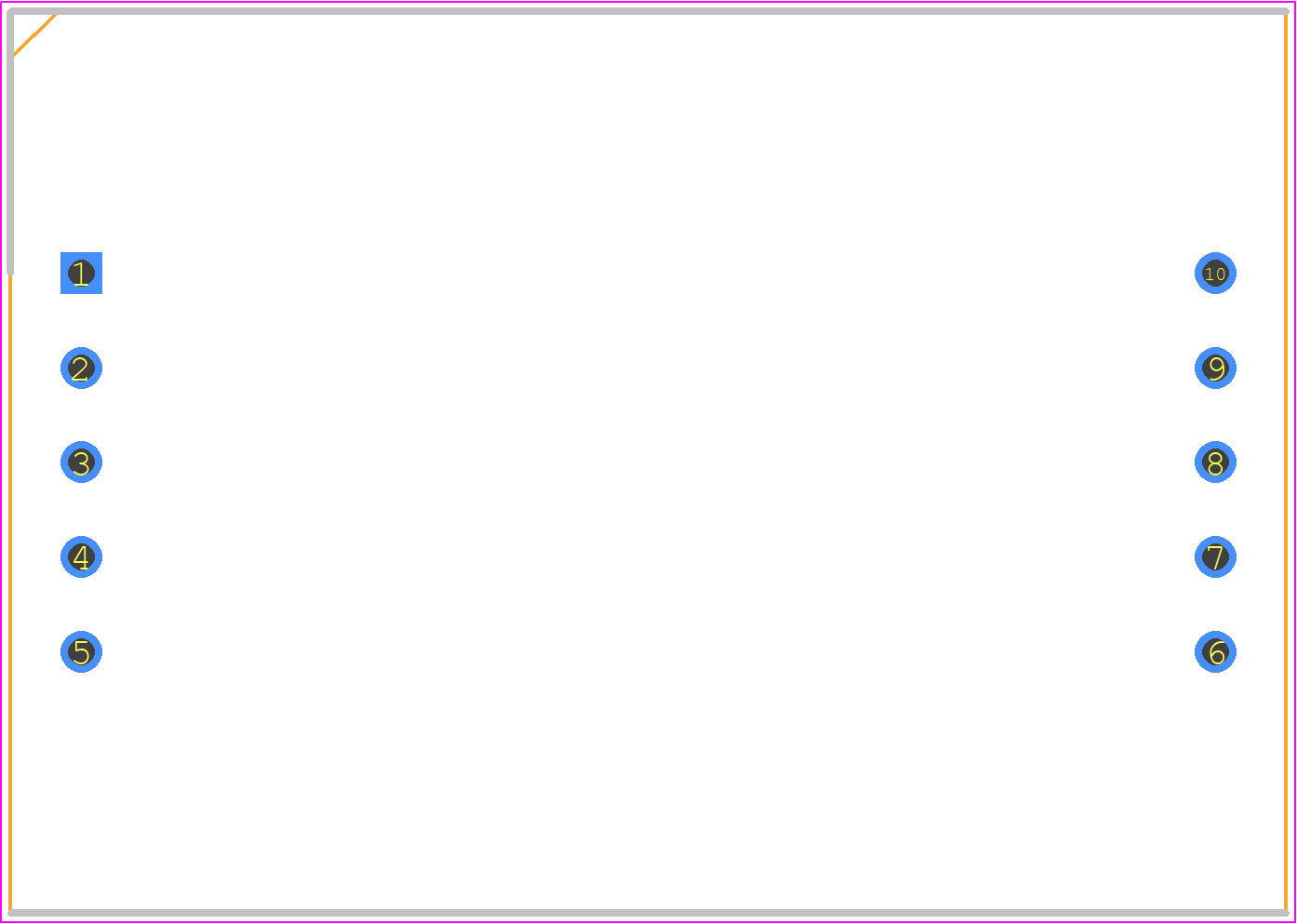

LDS-AA12RI - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP10
click to zoom
3D Models
LDS-AA12RI - Lumex - 3D model - Dual-In-Line Sockets - DIP10
click to zoom

LDS-AA12RI Details

  • Manufacturer Part Number:

    LDS-AA12RI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    25.4 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    5.6 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    568 nm

LDS-AA12RI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDS-AA12RI is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
  • To ensure reliability in high-vibration environments, it's recommended to follow the manufacturer's guidelines for mounting and securing the device. Additionally, consider using vibration-dampening materials or mounting the device on a shock-absorbing surface.
  • The typical lead time for delivery of the LDS-AA12RI can vary depending on the quantity and availability. However, ITW Lumex typically quotes a lead time of 6-8 weeks for standard orders.
  • While the LDS-AA12RI is designed for indoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, dust, and extreme temperatures. Consider using a protective enclosure or conformal coating to ensure reliability.
  • The maximum current rating for the LDS-AA12RI is 1.5A per channel, although it's recommended to derate the current to ensure reliable operation and prevent overheating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDS-AA12RI Overview

Use the download button to access the LDS-AA12RI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDS-A, or try a keyword search, such as LED Displays
