The recommended PCB layout for optimal thermal performance is to have a solid copper ground plane on the bottom layer, and a solid copper pour on the top layer connected to the cathode pin. This helps to dissipate heat efficiently.
To ensure reliable soldering, use a soldering iron with a temperature range of 240°C to 260°C, and a soldering time of less than 3 seconds. Also, use a flux that is compatible with the component's finish.
The recommended operating temperature range for the LDS-C504RI is -40°C to 85°C. Operating outside this range may affect the component's performance and reliability.
To prevent damage, handle the LDS-C504RI by the body or the leads, and avoid touching the glass surface. Also, avoid applying excessive force, bending, or twisting during assembly.
The recommended storage condition for the LDS-C504RI is in a dry, clean, and dark environment, with a temperature range of 5°C to 30°C, and humidity below 60%. Avoid storing the component in direct sunlight or near sources of radiation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDS-C504RI Overview

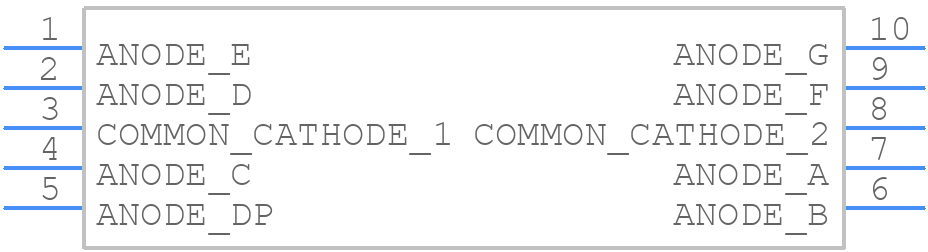

Use the download button to access the LDS-C504RI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LDS-C,
or try a keyword search, such as LED Displays
