Part Image

LDS-C514RI - Lumex

Description: LED Displays & Accessories .56" Singl Num Rd/Or

Download LDS-C514RI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

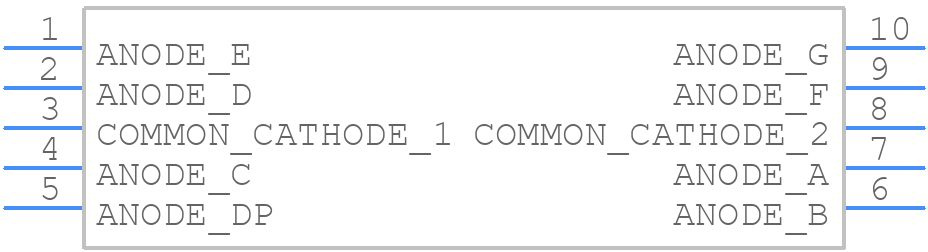

LDS-C514RI - Lumex - PCB symbol
click to zoom
PCB Footprints

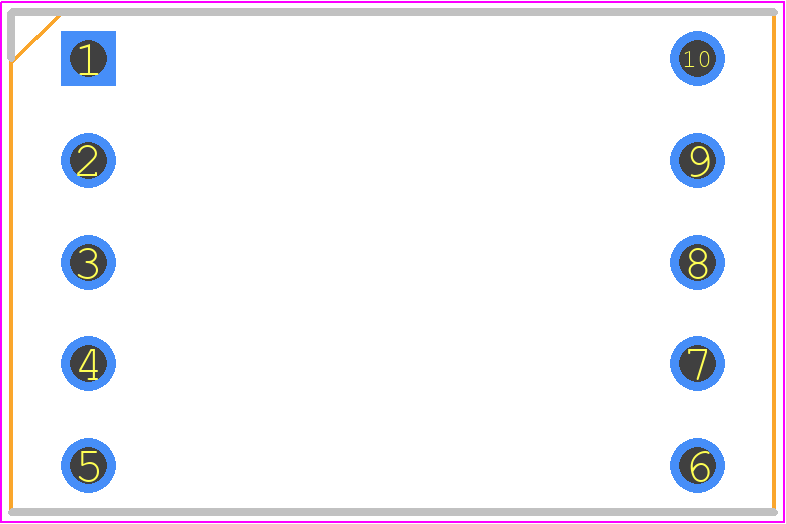

LDS-C514RI - Lumex PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)
click to zoom
3D Models
LDS-C514RI - Lumex - 3D model - Dual-In-Line Sockets - 10-DIP (0.600", 15.24mm)
click to zoom

LDS-C514RI Details

  • Manufacturer Part Number:

    LDS-C514RI

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    ITW Lumex

  • YTEOL:

    6

  • Color:

    RED

  • Color@Wavelength:

    Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.6 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    635 nm

LDS-C514RI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LDS-C514RI is -40°C to 85°C, but it can be customized to operate at a wider temperature range with proper derating.
  • To ensure reliability in high-vibration environments, it is recommended to follow proper mounting and soldering techniques, and to consider using a vibration-dampening material or a shock-absorbing mount.
  • Yes, the LDS-C514RI can be used in outdoor applications, but it is recommended to use a suitable enclosure or protective coating to protect the device from environmental factors such as moisture, dust, and UV radiation.
  • The typical response time of the LDS-C514RI is around 10-20 microseconds, but this can vary depending on the specific application and operating conditions.
  • Calibration of the LDS-C514RI typically involves adjusting the sensitivity and threshold settings to optimize performance for the specific application. ITW Lumex provides calibration guidelines and support to help customers achieve optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDS-C514RI Overview

Use the download button to access the LDS-C514RI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDS-C, or try a keyword search, such as LED Displays
