LDS-F3902RI - Lumex

Description: Display Modules - LED Character and Numeric Green 14-Segment, Alphanumeric 1 Character Common Cathode 2.2V 10mA 0.945" H x 0.394" W x 0.276" D (24.00mm x 10.00mm x 7.00mm) 18-DIP (0.300", 7.62mm)

Download LDS-F3902RI Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LDS-F3902RI model

Email notifications will be applied after download.

Send part feedback

Symbol

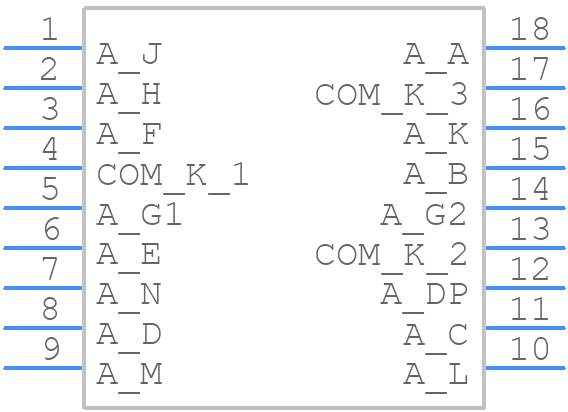

LDS-F3902RI - Lumex - PCB symbol

PCB Footprints

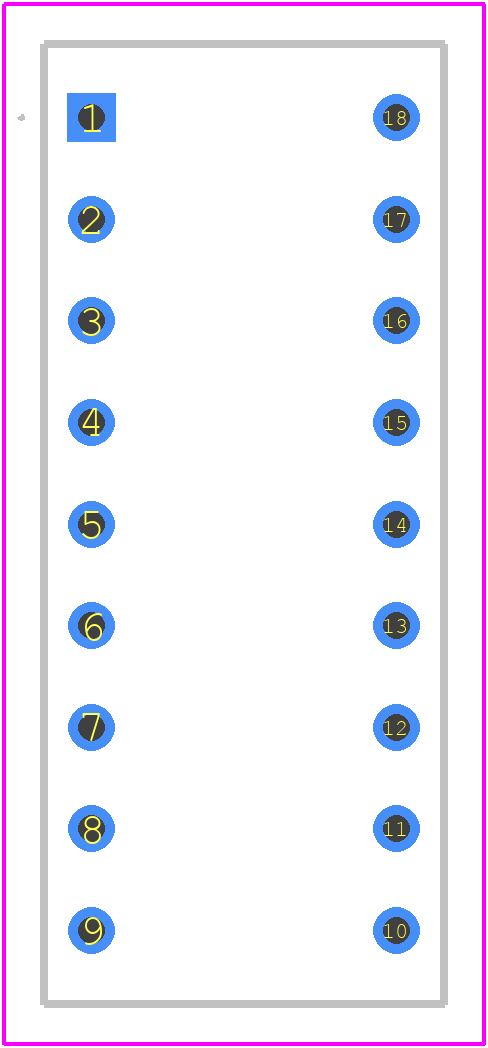

LDS-F3902RI - Lumex PCB footprint - Other - Other - LDS-F3902RI-2

3D Models

LDS-F3902RI - Lumex - 3D model - Other - LDS-F3902RI-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for LDS-F3902RI
Part Number LDS-F3902RI
Manufacturer Lumex
Pin Count 18
Part Category Display
Package Category Other
Footprint Name Other - LDS-F3902RI-2
Released Date Dec 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LDS-F3902RI Details

Manufacturer Part Number:
LDS-F3902RI
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8541.40.20.00
Manufacturer:
ITW Lumex
YTEOL:
5.85
Optoelectronic Device Type:
16 SEG ALPHANUMERIC LED DISPLAY

Trust Checks

Community Provided

System Verified

Community Approved

LDS-F3902RI Overview

Use the download button to access the LDS-F3902RI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDS-F, or try a keyword search, such as LED Displays
