LDS-M512RI-RA footprint, schematic symbol and 3D model by Lumex

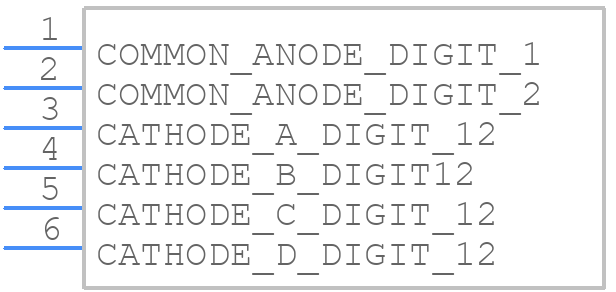

Symbol

PCB Footprints

3D Models

LDS-M512RI-RA Details

The recommended operating temperature range for LDS-M512RI-RA is -20°C to 80°C, but it can operate up to 100°C with reduced performance and lifespan.
Proper thermal management can be achieved by providing a heat sink or a metal core PCB, and ensuring good airflow around the LED. The thermal pad on the bottom of the LED should be soldered to a thermal vias or a heat sink to dissipate heat efficiently.
The recommended drive current for LDS-M512RI-RA is 500mA, but it can be driven up to 1A with proper thermal management and reduced lifespan.
The LDS-M512RI-RA has a polarity, and the anode (positive leg) should be connected to the positive voltage source, while the cathode (negative leg) should be connected to the negative voltage source or ground.
The typical junction temperature of LDS-M512RI-RA is around 120°C, but it can be higher depending on the operating conditions and thermal management.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LDS-M512RI-RA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDS-M, or try a keyword search, such as LED Displays
