LDT-M2806RI footprint, schematic symbol and 3D model by Lumex

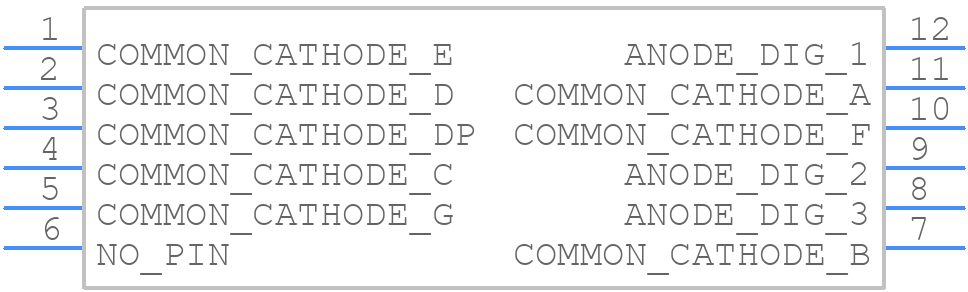

Symbol

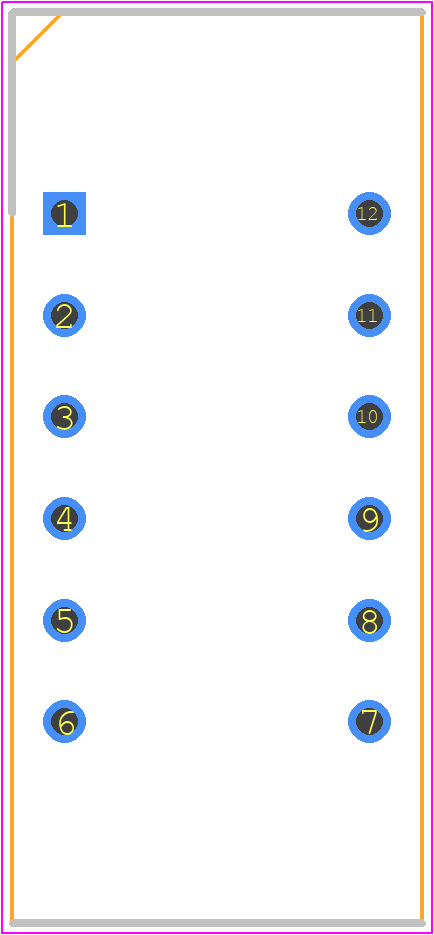

PCB Footprints

3D Models

LDT-M2806RI Details

The recommended storage temperature for LDT-M2806RI is -20°C to 40°C (-4°F to 104°F) with a relative humidity of 60% or less.
While LDT-M2806RI is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. A suitable enclosure or coating may be necessary to ensure reliability.
The typical lead time for LDT-M2806RI is 4-6 weeks, but this may vary depending on the quantity, region, and availability. It's best to check with the supplier or distributor for the most up-to-date lead time information.
Yes, LDT-M2806RI is compatible with lead-free soldering processes. The device is RoHS compliant and can be soldered using lead-free soldering techniques.
The maximum operating temperature for LDT-M2806RI is 85°C (185°F). Operating the device above this temperature may affect its performance, reliability, and lifespan.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LDT-M2806RI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDT-M, or try a keyword search, such as LED Displays
