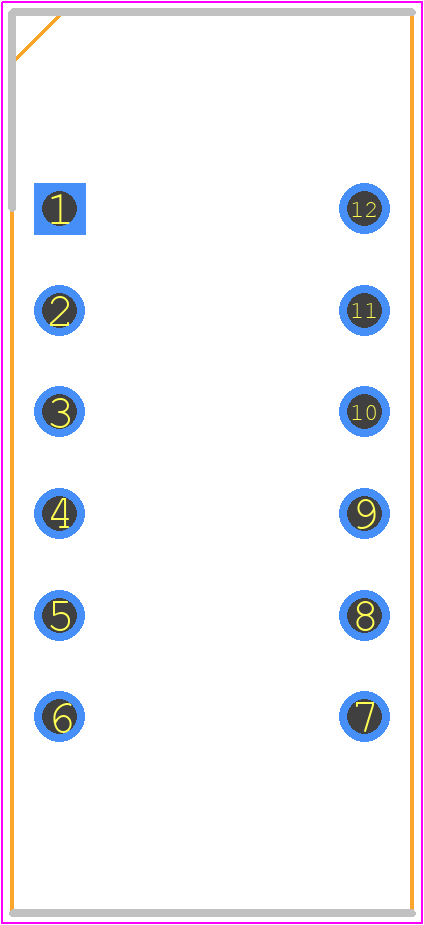

LDT-N2804RI footprint, schematic symbol and 3D model by Lumex

Symbol

PCB Footprints

3D Models

LDT-N2804RI Details

The recommended operating temperature range for the LDT-N2804RI is -40°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
To ensure reliability in high-humidity environments, it is recommended to use a conformal coating or potting compound to protect the device from moisture. Additionally, the device should be stored in a dry, clean environment prior to use.
The typical response time of the LDT-N2804RI is around 10-20 microseconds, although this can vary depending on the specific application and operating conditions.
Yes, the LDT-N2804RI can be used in outdoor applications, but it is recommended to use a suitable enclosure or housing to protect the device from environmental factors such as UV radiation, moisture, and extreme temperatures.
The LDT-N2804RI can be interfaced with a microcontroller using a digital output, such as a TTL or CMOS signal. The device can be connected directly to a microcontroller input pin, or through a buffer or amplifier if necessary.

Community Provided

System Verified

Community Approved

Use the download button to access the LDT-N2804RI schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LDT-N, or try a keyword search, such as LED Displays
