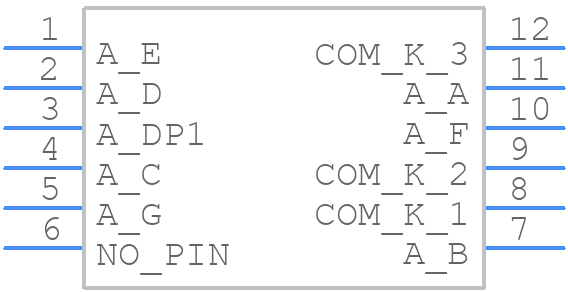

Symbol

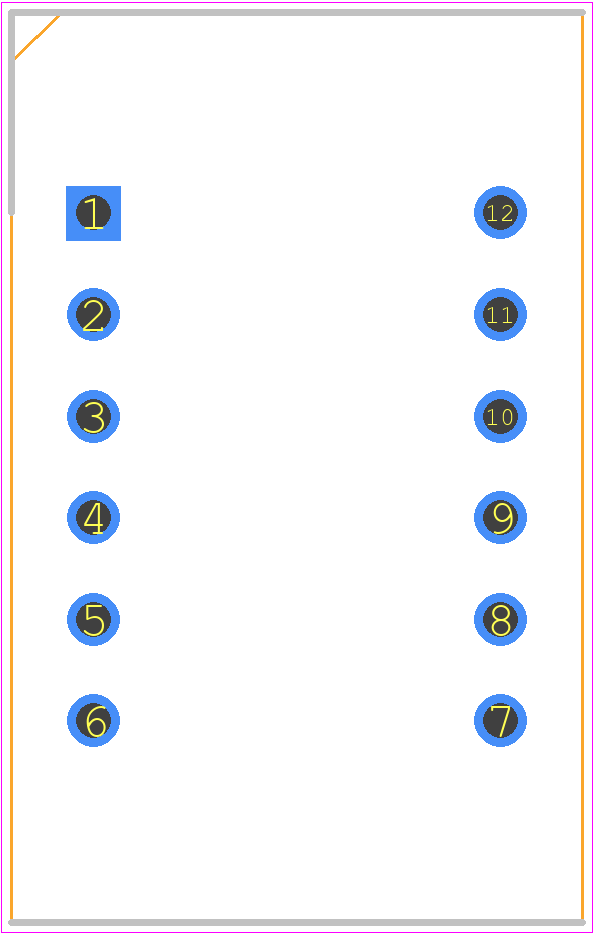

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LDT-N3602RI
- Part Number LDT-N3602RI
- Manufacturer Lumex
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LDT-N3602RI
- Released Date Sep 19, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LDT-N3602RI Details
-
Manufacturer Part Number:
LDT-N3602RI
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8541.40.20.00
-
Manufacturer:
ITW Lumex
-
YTEOL:
6.6
-
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Trust Checks
Community Provided
System Verified
Community Approved
LDT-N3602RI Overview
Use the download button to access the LDT-N3602RI schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LDT-N,
or try a keyword search, such as LED Displays
