LDU0830S350 - XP POWER

Description: XP POWER - LDU0830S350 - LED Driver DC/DC Converter, Constant Current, LDU08 Series, 8 W, 28 V, 350 mA, Analogue, PWM

Download LDU0830S350 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

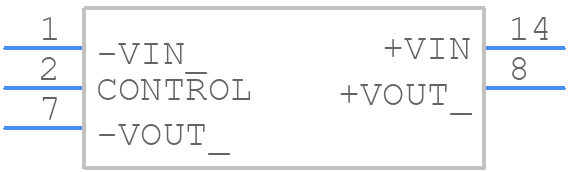

Symbol
LDU0830S350 - XP POWER - PCB symbol
click to zoom

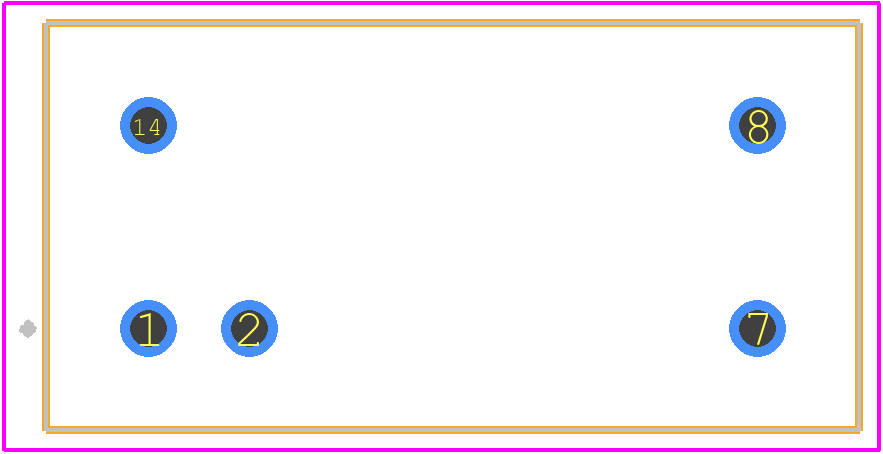

PCB Footprints
LDU0830S350 - XP POWER PCB footprint - Other - Other - LDU0830S350-2
click to zoom
3D Models
LDU0830S350 - XP POWER - 3D model - Other - LDU0830S350-2
click to zoom

LDU0830S350 Details

  • Manufacturer Part Number:

    LDU0830S350

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-14/5

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE; EN; UKCA

  • Efficiency (Main Output):

    95%

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    7 V

  • JESD-30 Code:

    R-XDMA-P5

  • Length:

    20.32 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.35 A

  • Output Voltage-Max:

    28 V

  • Output Voltage-Min:

    2 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,5/14LEAD,.2

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.07 Vrms

  • Seated Height-Max:

    7.38 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    8 W

  • Trim/Adjustable Output:

    YES

  • Width:

    10.16 mm

LDU0830S350 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • The LDU0830S350 has built-in input voltage transient protection, and can withstand voltage spikes up to 4kV (IEC61000-4-5) and surges up to 2kV (IEC61000-4-4). However, additional external protection may be required for specific applications.
  • According to XP Power, the MTBF of the LDU0830S350 is approximately 2.5 million hours, calculated according to MIL-HDBK-217F (Notice 2) at 40°C ambient temperature.
  • Yes, the LDU0830S350 is designed to operate up to 5,000 meters (16,400 ft) above sea level, but derating may be required for high-altitude applications. Consult XP Power for specific guidance.
  • The typical efficiency of the LDU0830S350 is around 83% at full load, 80% at 50% load, and 75% at 25% load. However, actual efficiency may vary depending on the specific application and operating conditions.
