LEA-6H-0-002 footprint, schematic symbol and 3D model by u-blox

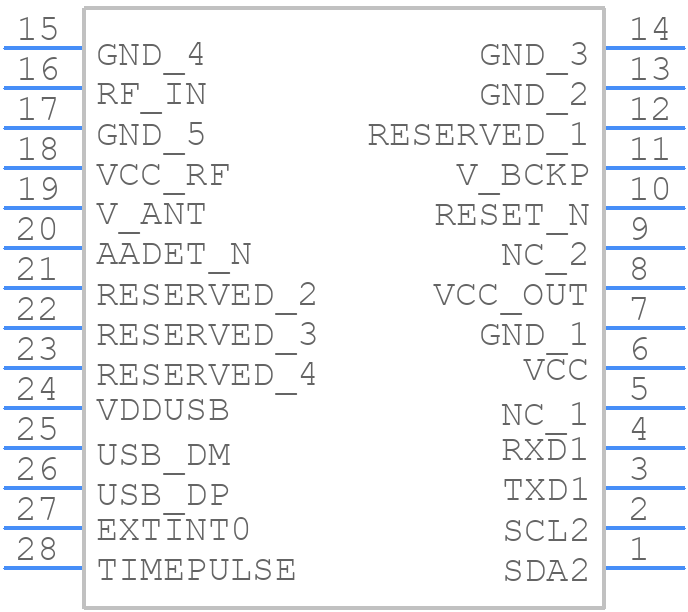

Symbol

click to zoom

PCB Footprints

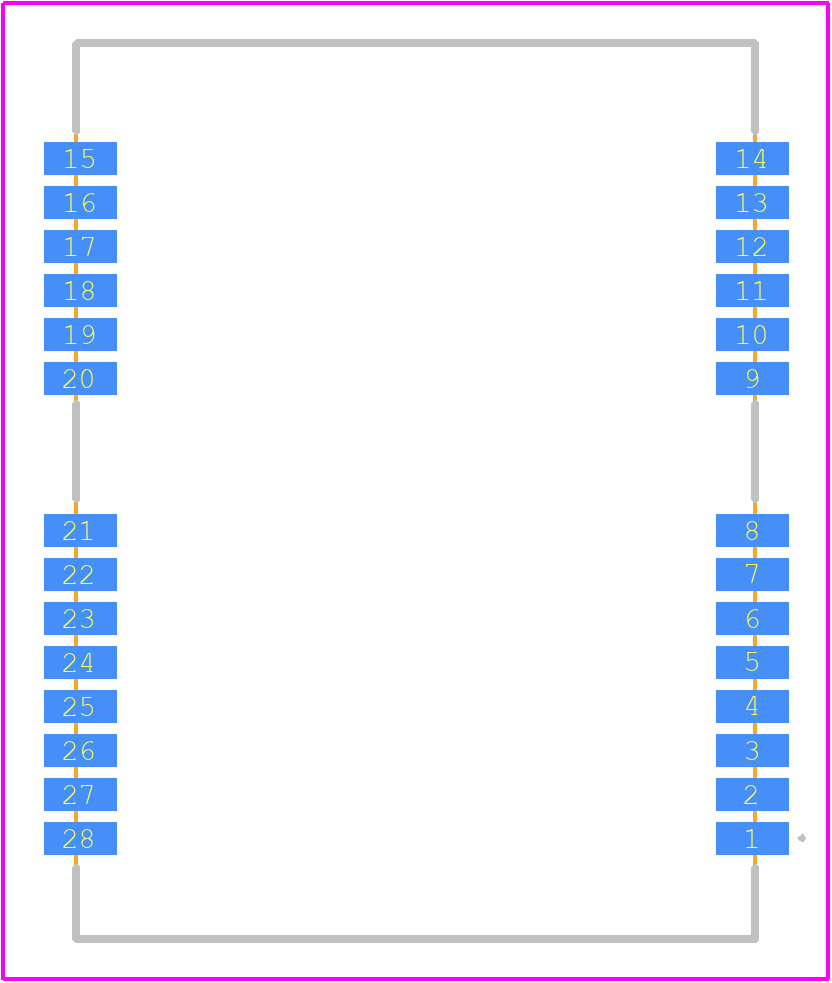

LEA-6H-0-002 - u-blox PCB footprint - Other - Other - LEA-6H-0-002-2

click to zoom

3D Models

LEA-6H-0-002 - u-blox - 3D model - Other - LEA-6H-0-002-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LEA-6H-0-002
Part Number LEA-6H-0-002
Manufacturer u-blox
Pin Count 28
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LEA-6H-0-002-2
Released Date Mar 17, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LEA-6H-0-002 Details

Manufacturer Part Number:
LEA-6H-0-002
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
MODULE
Package Description:
17 X 22.40 X 2.40 MM, ROHS COMPLIANT, PACKAGE-28
Pin Count:
28
HTS Code:
8542.39.00.01
Manufacturer:
u-blox AG
YTEOL:
0
JESD-30 Code:
R-PDMA-N28
Length:
22.4 mm
Moisture Sensitivity Level:
4
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Screening Level:
AEC-Q100
Seated Height-Max:
2.7 mm
Supply Voltage-Nom:
3 V
Surface Mount:
NO
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
1.1 mm
Terminal Position:
DUAL
Width:
17 mm

LEA-6H-0-002 Frequently Asked Questions (FAQs)

The recommended power-up sequence is to first apply VCC, then VBackup, and finally enable the module by setting the PSON pin high. This ensures proper initialization and prevents damage to the module.
The LEA-6H-0-002 has an internal antenna switch, which can be configured using the UBX-CFG-ANT protocol. You can use the u-blox u-center software to configure the antenna settings and optimize the module's performance for your specific antenna.
The maximum update rate for the LEA-6H-0-002 is 10 Hz, which means it can provide location data up to 10 times per second. However, this may vary depending on the specific configuration and operating conditions.
Yes, the LEA-6H-0-002 supports hot-start, which allows it to quickly recover its last known position and velocity after a power cycle. This is useful in applications where the module is frequently powered on and off.
u-blox provides a range of tools and resources to help troubleshoot issues with the LEA-6H-0-002, including the u-blox u-center software, technical notes, and application notes. You can also contact u-blox support for assistance with specific issues.

Trust Checks

Expert Contribution

System Verified

Community Approved

LEA-6H-0-002 Overview

Use the download button to access the LEA-6H-0-002 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LEA-6, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
