LEA-6T-0 - u-blox

Description: GNSS / GPS Modules u-blox 6 GPS moduleTiming, raw dataLCC, 17x22 mm, 250 pcs/reel

Download LEA-6T-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

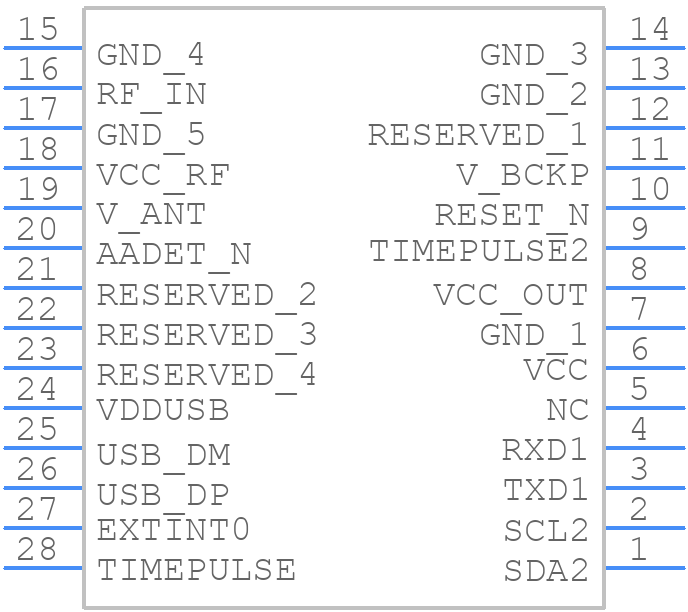

Symbol
LEA-6T-0 - u-blox - PCB symbol
click to zoom

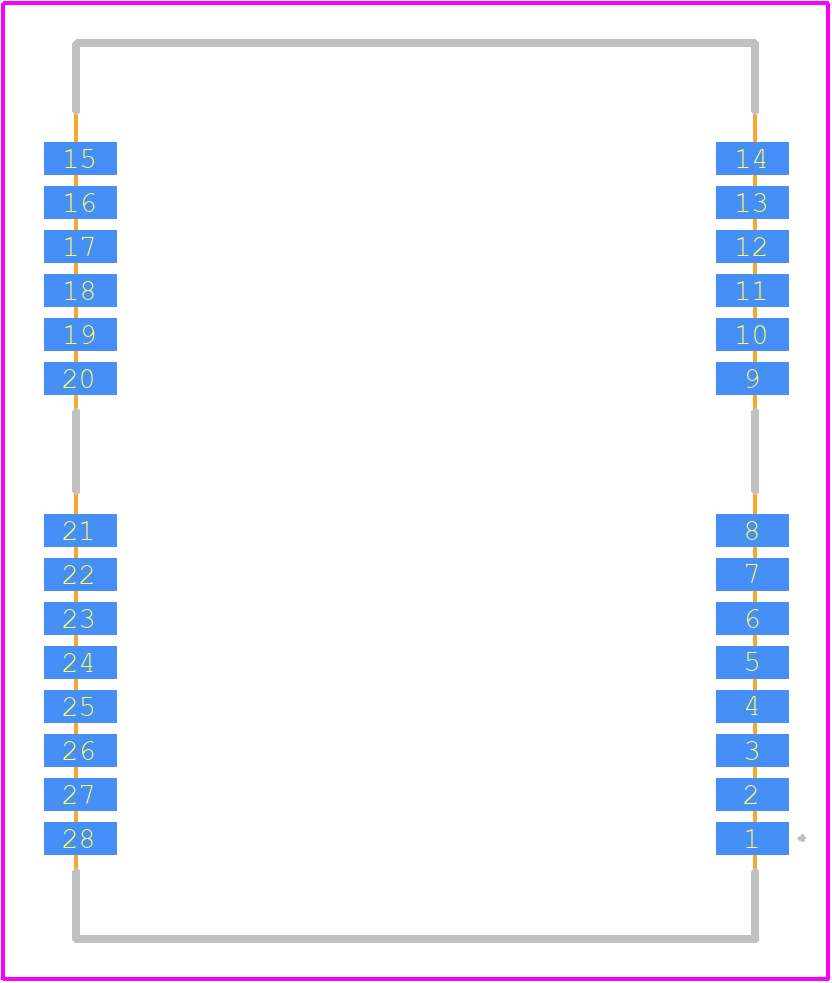

PCB Footprints
LEA-6T-0 - u-blox PCB footprint - Other - Other - LEA-6T-0-2
click to zoom
3D Models
LEA-6T-0 - u-blox - 3D model - Other - LEA-6T-0-2
click to zoom

LEA-6T-0 Details

  • Manufacturer Part Number:

    LEA-6T-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LCC-28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    u-blox AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-N28

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100; TS 16949

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

LEA-6T-0 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before applying the enable signal (EN pin).
  • The LEA-6T-0 can be configured using the u-blox UBX protocol, which allows for setting various GPS modes and parameters. Refer to the u-blox protocol specification for more information.
  • The maximum update rate of the LEA-6T-0 is 10 Hz. To achieve this, set the navigation rate to 10 Hz using the UBX-CFG-RATE command, and ensure that the module is properly configured and powered.
  • Check the antenna installation, ensure good visibility to the sky, and verify that the module is properly configured. Use the UBX-MON-VIEW command to monitor the signal strength and satellite visibility.
  • Yes, the LEA-6T-0 can be used with an external antenna. The antenna should be designed for GPS frequencies (L1 band) and have a gain of around 28 dB. Ensure proper impedance matching and cable length to avoid signal degradation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LEA-6T-0 Overview

Use the download button to access the LEA-6T-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LEA-6, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
