LEA-M8T-0-10 - u-blox

Description: LEA-M8T u-blox M8 concurrent GNSS timing modules.

Download LEA-M8T-0-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

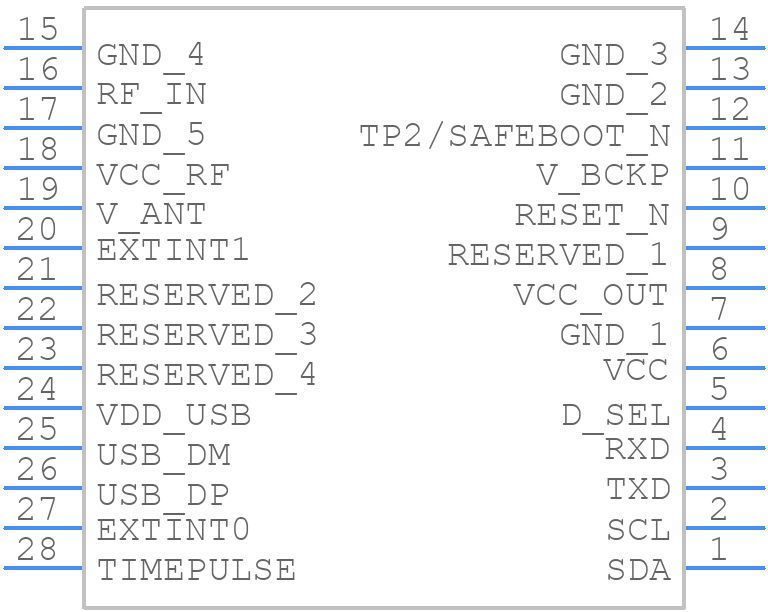

LEA-M8T-0-10 - u-blox - PCB symbol
click to zoom
PCB Footprints
LEA-M8T-0-10 - u-blox PCB footprint - Other - Other - LEA-M8T-0-10-1
click to zoom
3D Models
LEA-M8T-0-10 - u-blox - 3D model - Other - LEA-M8T-0-10-1
click to zoom

LEA-M8T-0-10 Details

  • Manufacturer Part Number:

    LEA-M8T-0-10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-24

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XDMA-N24

  • Length:

    22.4 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.7 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Width:

    17 mm

LEA-M8T-0-10 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the module, then wait for at least 100ms before sending any commands or data. This allows the module to complete its internal initialization.
  • The LEA-M8T-0-10 has an internal antenna switch, which can be configured using the $PUBX,40 command. The antenna type and gain can be set using the $PUBX,41 command.
  • The maximum update rate of the LEA-M8T-0-10 is 10 Hz, which means it can provide location data up to 10 times per second.
  • Yes, the LEA-M8T-0-10 supports hot-start, which allows it to quickly acquire a GPS signal after a power cycle. This is achieved by storing the ephemeris data in the module's internal memory.
  • To troubleshoot GPS signal issues, check the signal strength and quality using the $PUBX,00 command. Also, ensure that the antenna is properly connected and oriented, and that there are no sources of interference nearby.
