LED2472GBTR - STMicroelectronics

Description: 24-Ch LED Driver with Error, Gain TQFP48 STMicroelectronics LED2472GBTR, LED Driver 24-Segments, 3 → 5.5 V, 48-Pin TQFP

Download LED2472GBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

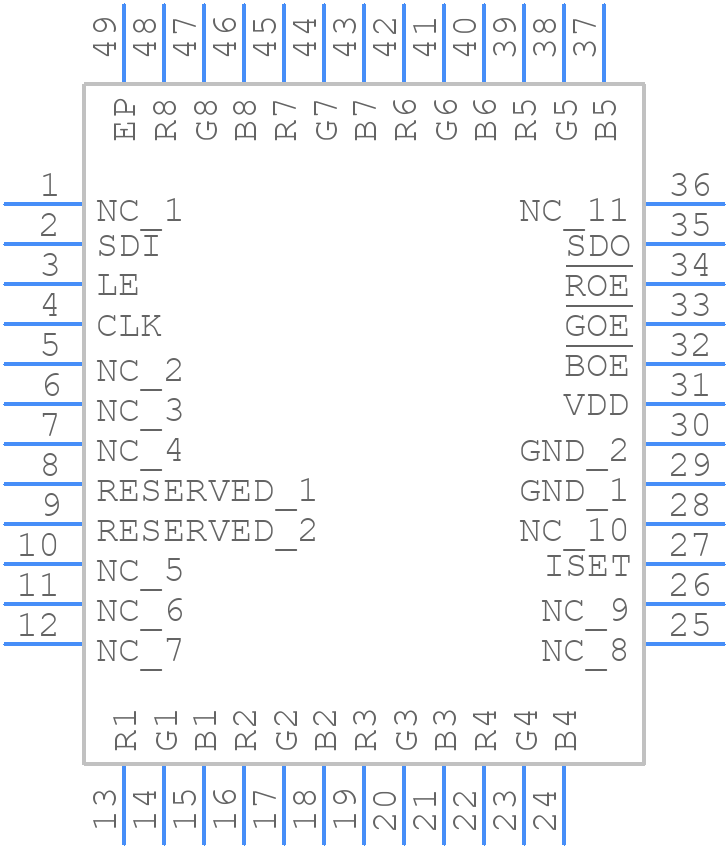

Symbol
LED2472GBTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LED2472GBTR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP48
click to zoom
3D Models
LED2472GBTR - STMicroelectronics - 3D model - Quad Flat Packages - TQFP48
click to zoom

LED2472GBTR Details

  • Manufacturer Part Number:

    LED2472GBTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    1

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    24

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    HQFP48,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • fmax-Min:

    30 MHz

LED2472GBTR Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LED2472GBTR near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of solder mask.
  • To ensure reliable operation at high temperatures, ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Implement proper thermal management, such as heat sinks or thermal interfaces, and avoid overheating the device. Monitor the device's thermal performance and adjust the design accordingly.
  • The recommended input capacitor value is 1-10 μF, with a voltage rating of 10-50 V. A low-ESR ceramic capacitor (e.g., X5R or X7R) is recommended for its high reliability and low equivalent series resistance (ESR).
  • To minimize EMI, use a shielded cable or a twisted pair for the LED connections, and keep the LED2472GBTR away from noise sources. Implement a good grounding scheme, and use a common-mode choke or a ferrite bead to filter out high-frequency noise.
  • The recommended LED current sense resistor value depends on the specific application and the desired LED current. A typical value is 1-10 Ω, but it may need to be adjusted based on the LED's forward voltage and the desired current. Consult the LED's datasheet for specific recommendations.
