LED6000PHTR - STMicroelectronics

Description: 3 A, 61 V monolithic current source with dimming capability

Download LED6000PHTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

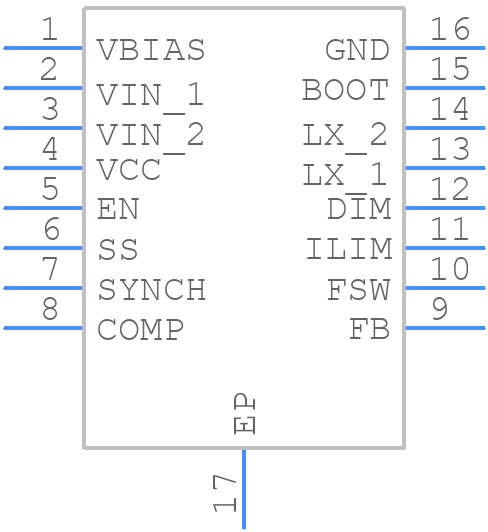

Symbol
LED6000PHTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LED6000PHTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16_
click to zoom
3D Models
LED6000PHTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16_
click to zoom

LED6000PHTR Details

  • Manufacturer Part Number:

    LED6000PHTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7.89

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    61 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

LED6000PHTR Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a PCB layout with a large copper area connected to the thermal pad of the LED6000PHTR to dissipate heat efficiently. A minimum of 2oz copper thickness and a thermal via array under the device are also recommended.
  • The LED6000PHTR requires a bias voltage of 12V to 15V on the VIN pin, and a bias current of 10mA to 20mA on the IBIAS pin. Ensure that the bias voltage and current are within these ranges to achieve optimal performance.
  • The LED6000PHTR is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device's performance and consider additional thermal management measures for ambient temperatures above 70°C.
  • Handle the LED6000PHTR with ESD-protective equipment and follow proper ESD handling procedures. Ensure that the device is stored in an ESD-protective package and that the PCB is designed with ESD protection in mind.
  • The LED6000PHTR can be dimmed at frequencies up to 1kHz. However, it's recommended to use a dimming frequency of 200Hz to 400Hz for optimal performance and to minimize flicker.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LED6000PHTR Overview

Use the download button to access the LED6000PHTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LED60, or try a keyword search, such as Display Drivers
