- Part Number LEE-9+
- Manufacturer Mini-Circuits
- Pin Count 4
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 3mm x 3mm MCLP
- Released Date Aug 13, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LEE-9+ Details
-
Manufacturer Part Number:
LEE-9+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
6.2
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Gain:
7.6 dB
-
Input Power-Max (CW):
15 dBm
-
Mounting Feature:
SURFACE MOUNT
LEE-9+ Frequently Asked Questions (FAQs)
-
Mini-Circuits recommends a 4-layer PCB with a solid ground plane on the bottom layer, a signal layer on the top layer, and power planes on the inner layers. This layout helps to minimize noise and ensure optimal performance.
-
Proper thermal management is crucial for the LEE-9+. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The recommended operating temperature range is -40°C to +85°C.
-
The LEE-9+ can handle input powers up to +20 dBm. Exceeding this limit may cause damage to the device or affect its performance.
-
While the LEE-9+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with some performance degradation. However, Mini-Circuits recommends using impedance-matching networks to ensure optimal performance.
-
The typical current consumption of the LEE-9+ is around 120 mA at +5V supply voltage. However, this may vary depending on the specific application and operating conditions.
Trust Checks
Community Provided
System Verified
Community Approved
LEE-9+ Overview

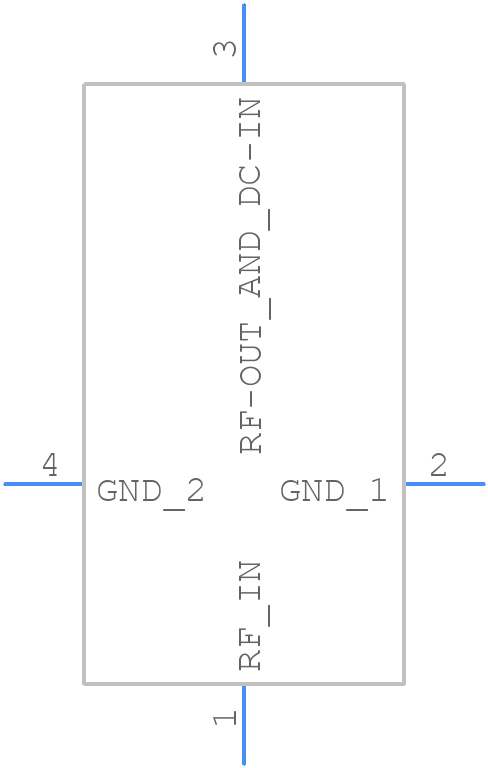

Use the download button to access the LEE-9+ schematic symbol, PCB footprint, and 3D model.
