LF15ABDT-TR - STMicroelectronics

LF15ABDT-TR Details

• Manufacturer Part Number:

  LF15ABDT-TR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

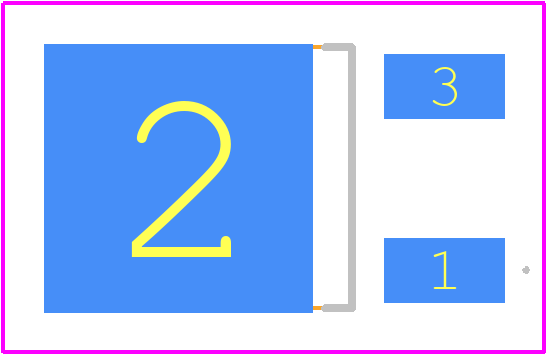

• Part Package Code:

  TO-252

• Package Description:

  DPAK-3/2

• Pin Count:

  3

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  7

• Adjustability:

  FIXED

• Dropout Voltage1-Nom:

  1 V

• Input Voltage Absolute-Max:

  40 V

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  2.5 V

• JESD-30 Code:

  R-PSSO-G2

• JESD-609 Code:

  e3

• Length:

  6.5 mm

• Line Regulation-Max:

  0.01%

• Load Regulation-Max:

  0.01%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  2

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.5 A

• Output Voltage1-Max:

  1.53 V

• Output Voltage1-Min:

  1.47 V

• Output Voltage1-Nom:

  1.5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TO-252

• Package Equivalence Code:

  SMSIP3H,.38,90TB

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  2.4 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.28 mm

• Terminal Position:

  SINGLE

• Voltage Tolerance-Max:

  1%

• Width:

  6.1 mm
