LF412CDR - Texas Instruments

Description: LF412CDRG4, Dual Operational Amplifier 3MHz, 8-Pin SOIC

Download LF412CDR Model

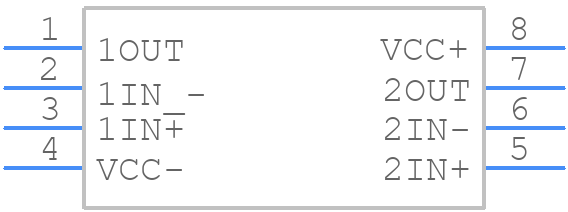

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LF412CDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
LF412CDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

LF412CDR Details

  • Manufacturer Part Number:

    LF412CDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China, Malaysia, Mexico, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    1989-03-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.008 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0001 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8 V/us

  • Slew Rate-Nom:

    13 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    6.8 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    JFET

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    3000

  • Voltage Gain-Min:

    15000

  • Wideband:

    NO

  • Width:

    3.9 mm

LF412CDR Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LF412CDR is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
  • To ensure stability in a unity-gain configuration, add a 10-22pF capacitor between the output and the inverting input pins to prevent oscillations. This is because the LF412CDR has a high gain-bandwidth product and can oscillate if not properly compensated.
  • Use a star-grounding technique, where the grounds of the power supplies, analog circuits, and digital circuits are connected at a single point. Keep the LF412CDR's input and output traces short and away from noise sources, and use a ground plane to reduce electromagnetic interference (EMI).
  • While the LF412CDR can be used as a comparator, it's not the best choice due to its relatively slow slew rate (0.5V/μs) and limited output current (±20mA). A dedicated comparator like the LM339 or LM2901 would be a better option for most applications.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins of the LF412CDR to protect against electrostatic discharge. Follow proper PCB layout and handling procedures to minimize the risk of ESD damage.
