LF53464-08TMR - LITTELFUSE

Description: The LF53464-08TMR angle sensor features a dual-axis, orthogonal push-pull Wheatstone bridge architecture. Each bridge integrates four high-sensitivity TMR (Tunnel Magnetoresistor) elements,1 V 7 V - 40 C+ 85 C SMD/SMT

Download LF53464-08TMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

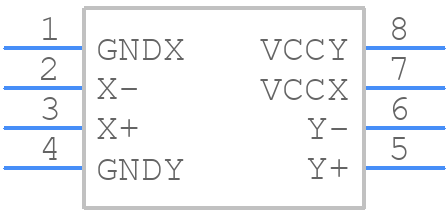

LF53464-08TMR - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints
LF53464-08TMR - LITTELFUSE PCB footprint - Small Outline No-lead - Small Outline No-lead - LGA8L
click to zoom
3D Models
LF53464-08TMR - LITTELFUSE - 3D model - Small Outline No-lead - LGA8L
click to zoom

LF53464-08TMR Details

  • Manufacturer Part Number:

    LF53464-08TMR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,MAGNETORESISTIVE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LF53464-08TMR Overview

Use the download button to access the LF53464-08TMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LF534, or try a keyword search, such as Magnetic Field Sensors
