LFE2-35E-5FN484C footprint, schematic symbol and 3D model by Lattice Semiconductor

Symbol

click to zoom

PCB Footprints

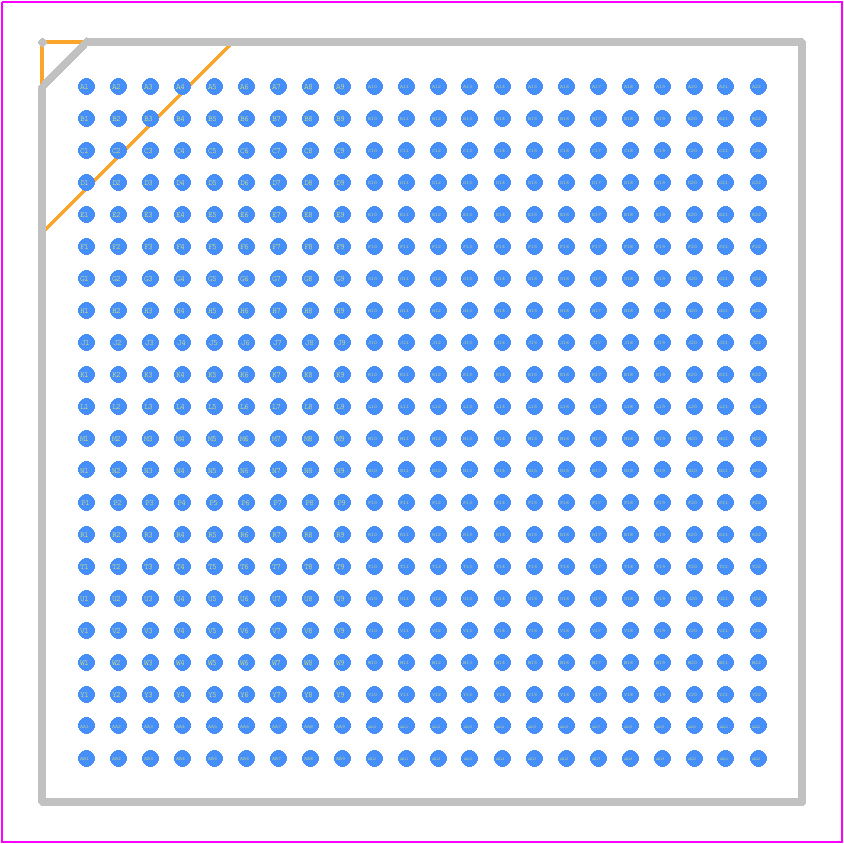

LFE2-35E-5FN484C - Lattice Semiconductor PCB footprint - BGA - BGA - 484-Ball caBGA Package (19x19 mm Body)

click to zoom

3D Models

LFE2-35E-5FN484C - Lattice Semiconductor - 3D model - BGA - 484-Ball caBGA Package (19x19 mm Body)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LFE2-35E-5FN484C
Part Number LFE2-35E-5FN484C
Manufacturer Lattice Semiconductor
Pin Count 484
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 484-Ball caBGA Package (19x19 mm Body)
Released Date May 28, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LFE2-35E-5FN484C Details

Manufacturer Part Number:
LFE2-35E-5FN484C
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
BGA
Package Description:
FPBGA-484
Pin Count:
484
Country Of Origin:
Malaysia, Taiwan
ECCN Code:
3A991.D
HTS Code:
8542.39.00.01
Manufacturer:
Lattice Semiconductor Corporation
YTEOL:
9
Clock Frequency-Max:
311 MHz
Combinatorial Delay of a CLB-Max:
0.358 ns
JESD-30 Code:
S-PBGA-B484
JESD-609 Code:
e1
Length:
23 mm
Moisture Sensitivity Level:
3
Number of CLBs:
4000
Number of Inputs:
331
Number of Logic Cells:
35000
Number of Outputs:
331
Number of Terminals:
484
Operating Temperature-Max:
85 °C
Organization:
4000 CLBS
Package Body Material:
PLASTIC/EPOXY
Package Code:
BGA
Package Equivalence Code:
BGA484,22X22,40
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Peak Reflow Temperature (Cel):
250
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Qualification Status:
Not Qualified
Seated Height-Max:
2.6 mm
Supply Voltage-Max:
1.26 V
Supply Voltage-Min:
1.14 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
TIN SILVER COPPER
Terminal Form:
BALL
Terminal Pitch:
1 mm
Terminal Position:
BOTTOM
Width:
23 mm

LFE2-35E-5FN484C Frequently Asked Questions (FAQs)

Lattice provides a PCB Design and Layout Guide for the LFE2-35E-5FN484C, which includes recommendations for PCB layout, routing, and signal integrity. It's available on the Lattice website.
Lattice recommends using an external POR circuit with a voltage supervisor IC, such as the TLV7031, to ensure a reliable power-on reset. The datasheet provides guidelines for POR circuit design.
The LFE2-35E-5FN484C has a thermal design power (TDP) of 1.5W. Lattice recommends using a heat sink or thermal interface material to ensure reliable operation. The datasheet provides thermal management guidelines and junction-to-ambient thermal resistance values.
Lattice provides a Clocking and PLL User Guide for the LFE2-35E-5FN484C, which includes information on clocking architecture, PLL configuration, and clock domain crossing. The guide is available on the Lattice website.
The LFE2-35E-5FN484C has 128KB of built-in flash memory. Lattice recommends using the flash memory for configuration storage and small data storage. The datasheet provides guidelines for flash memory usage and limitations.
