LFEC10E-3QN208C - Lattice Semiconductor

Description: IC FPGA 147 I/O 208QFP

Download LFEC10E-3QN208C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

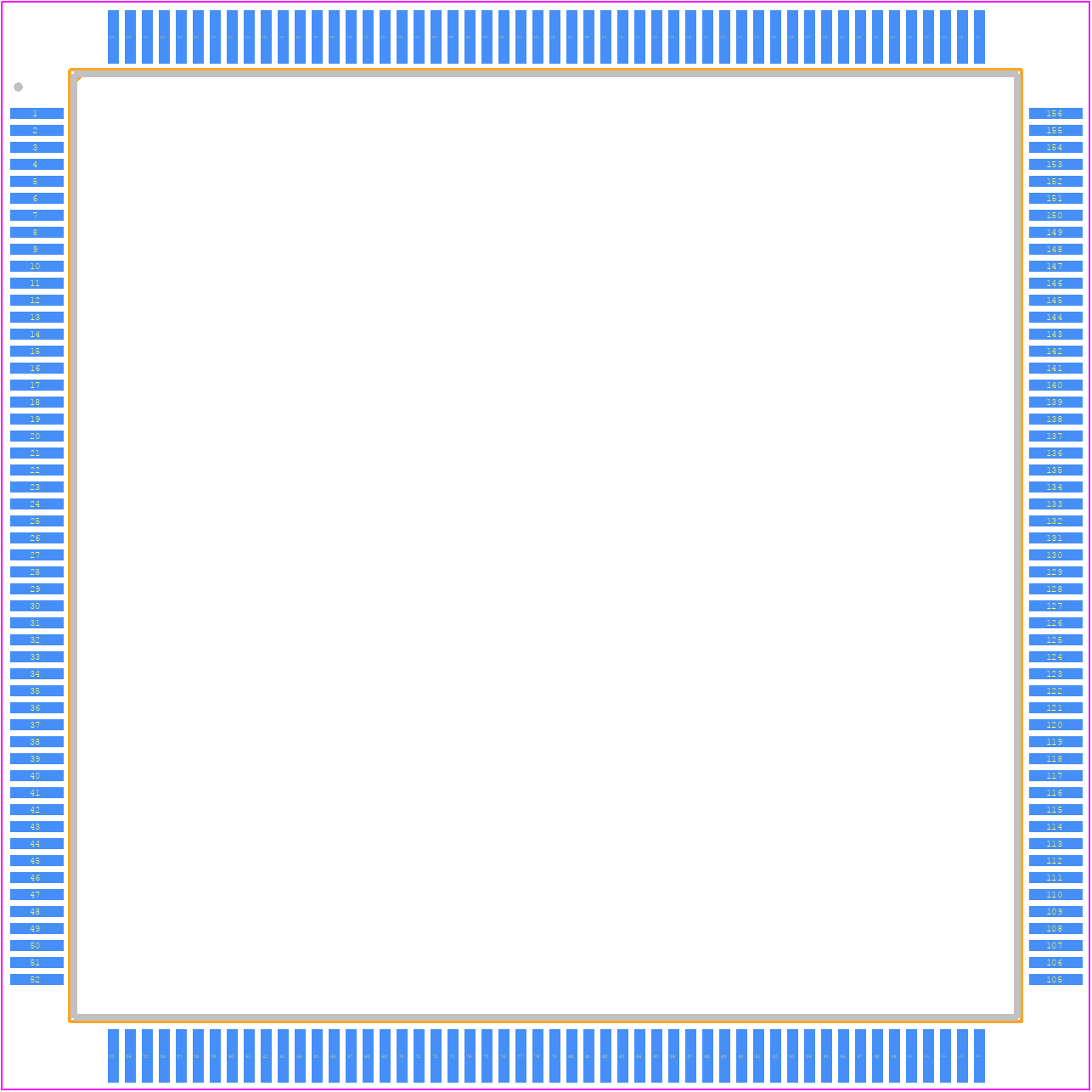

LFEC10E-3QN208C - Lattice Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - 208-Pin PQFP
click to zoom
3D Models
LFEC10E-3QN208C - Lattice Semiconductor  - 3D model - Quad Flat Packages - 208-Pin PQFP
click to zoom

LFEC10E-3QN208C Details

  • Manufacturer Part Number:

    LFEC10E-3QN208C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Pin Count:

    208

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    420 MHz

  • Combinatorial Delay of a CLB-Max:

    0.56 ns

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1280

  • Number of Inputs:

    147

  • Number of Logic Cells:

    10200

  • Number of Outputs:

    147

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1280 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.1 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    28 mm
