Lattice provides a PCB Design and Layout Guide (UG057) that offers guidelines for optimal signal integrity, including routing strategies, layer stacking, and decoupling capacitor placement.
Lattice recommends a power-up sequence that includes a slow ramp-up of the core voltage (VCC) and a delayed enable of the clock signal. The Lattice Power Calculator (LPC) tool can help determine the optimal power-up sequence.
The LFEC6E-5QN208C has a thermal design power (TDP) of 1.5W. To manage thermal performance, use a heat sink, ensure good airflow, and follow Lattice's thermal management guidelines (UG058). The junction temperature can be calculated using the thermal resistance (RθJA) and the power consumption.
To optimize power consumption, use the Lattice Power Calculator (LPC) tool to estimate power consumption, enable the Dynamic Voltage and Frequency Scaling (DVFS) feature, and utilize the Power-Shutdown (PSHUTDOWN) pin. Additionally, consider using the Lattice's low-power modes, such as the 'Sleep' mode.
Lattice provides the Lattice Diamond software, which includes a design environment, synthesis, place-and-route, and programming tools. Additionally, Lattice offers the Lattice Radiant software, which is a design and development environment for FPGAs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LFEC6E-5QN208C Overview

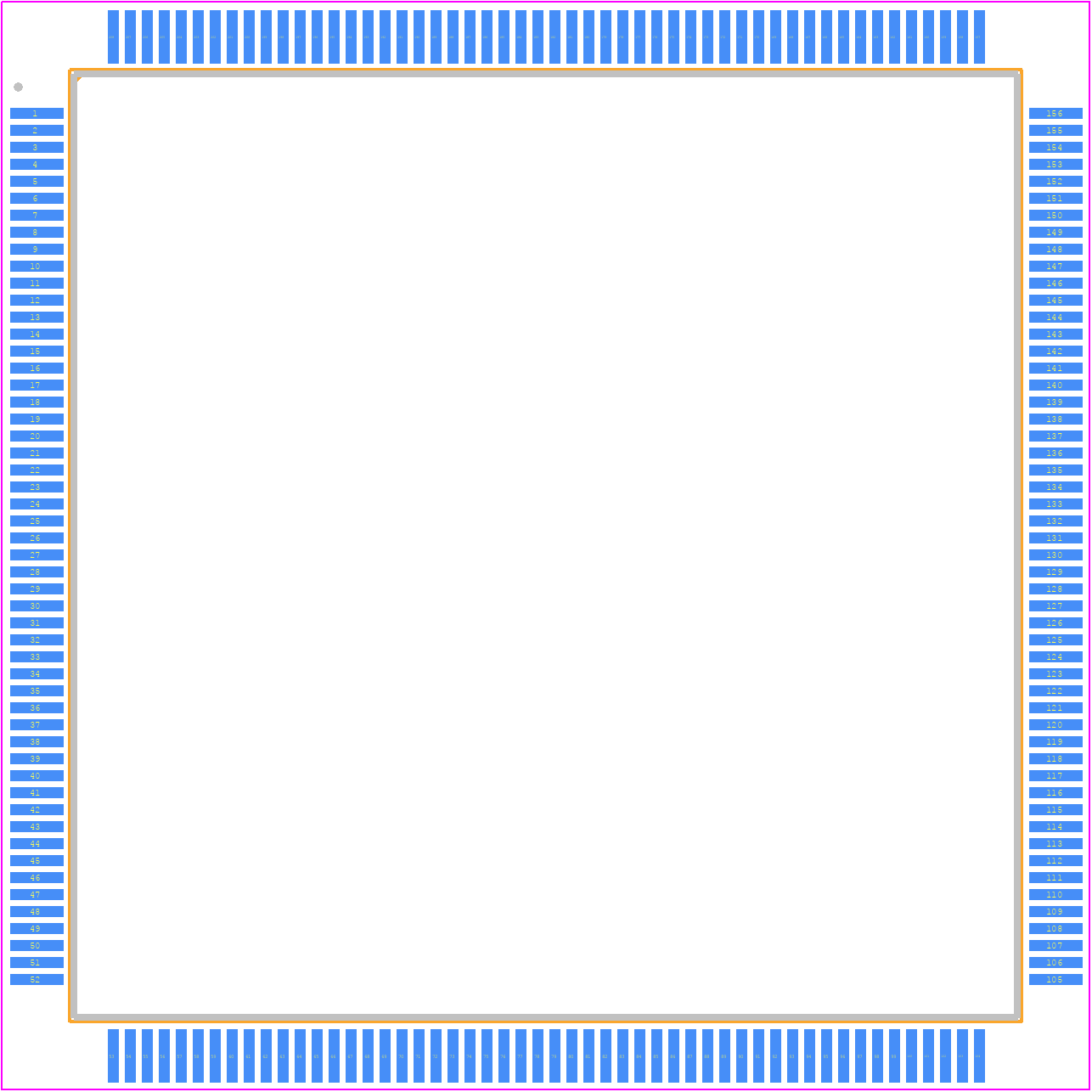

Use the download button to access the LFEC6E-5QN208C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LFEC6,
or try a keyword search, such as Field Programmable Gate Arrays
